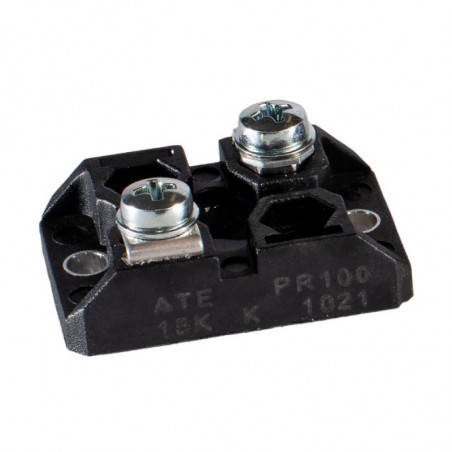

PR100 serija
  • PR100 serija

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

Gamintojas: ATE

PR100 serija

PR100

Very good ratio Power / Volume.
Easy mounting and wiring with significant cost advantages.
Non inductive performance for high frequency applications.
One model for power up to 150W.
Suited to UL94-V0 application.
SOT227 configuration.



Characteristics
Power rating: 100W (PR102 2 x 50W)
Max power not trimmed : 150W (heatsink at 70°C)
Resistance range: From 1R0 to 1MOhm, E12 series
Tolerance (Code): Standard 10%, up to 1% on request
Temperature coefficient: ±100 ppm/°C
Maximum working voltage 1500 Vac
Working temperature range From -55°C to +155°C
Dielectric strength 2500 Vac
Insulation resistance : > 105 MOhm at 500V
Partial discharge < 80 pC @ 2000 Vac (on request)
Self inductance 40 nH
Capacitance to heatsink : < 30 pF
Overload : 2 Pn x 10 s
Thermal resistance : 0.5 °C/W
Heatsink flatness : 0.05 mm Max
Heatsink surface finish : 6.3μm Max
Thermal grease : required
Max torque for contact : 1.2 Nm (static)
Max torque for mounting : 1.5 Nm (static)
Weight : 18 g (PR100 / PR101)
24 g (PR102 / PR103)


Product Card - Download
