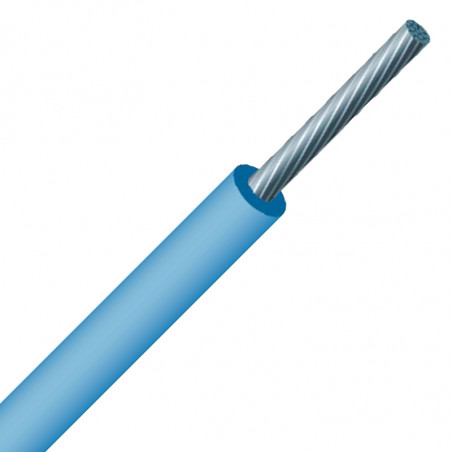

SILICABLE CS ir ECS -60°C iki +180°C
  • SILICABLE CS ir ECS -60°C iki +180°C
  • SILICABLE CS ir ECS -60°C iki +180°C

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

Gamintojas: OMERIN

SILICABLE CS ir ECS -60°C iki +180°C

Characteristics

• Continuous operating temperatures: -60 °C to +180 °C.
• Good resistance to thermal shock and UV.
• Rated voltage:
     S < 2,5 mm2: 300/500 V
     S ≥ 2,5 mm2: 600/1000 V
• Test voltage:
     S < 2,5 mm2: 2000V
     S ≥ 2,5 mm2: 3000 V.

Standard products

• Up to 120 mm²: all colours including two-coloured.
• From 150 mm² to 400 mm²: all colours except two-coloured.

Approvals - standards

• Halogen-free: IEC 60754-1 / EN 60754-1.
• Low corrosivity of gas emissions: IEC 60754-2 / EN 60754-2.
• Low smoke density: IEC 61034-2 / EN 61034.
• Fire retardant: NF C 32-070 test C1.

Applications

• Cabling for household electrical heating appliances.
• Rotating machines (class H).
• Lighting.
• Industrial cabling in hot atmospheres.

Options

• Nickel-plated copper core: ref. CNCS.
• Silver-plated copper core: ref. ACS.
• Pure nickel core (not described in IEC 60228): ref. NCS.
• Outer electrical shielding: > Tin-plated copper braid: ref. CSBE or ECSBE.
• Outer Flexible armour: > Galvanised steel braid: ref. CSBG or ECSBG. > Stainless steel braid: ref. CSBI or ECSBI.
• Stranded bare copper (ref. CS) or tin-plated (ref. ECS) core - class 2 as per IEC 60228: see details of the option below.
• Other nominal cross-sections: contact us.
• Other options and/or combinations of the options outlined above: contact us.

SILICABLE CS i ECS -60°C do +180°C - przewody wysokotemperaturowe, kable na wysoką temperature

1 • Flexible bare copper (ref. CS) or tin-plated (ref. ECS) core - class 5 as per IEC 60228.
2 • Insulation: Silicone rubber


Nominal cross-section
[mm2]
Nominal stranding Maximum linear resistance at 20 °C (Ω/km) Nominal thickness of insulation
[mm]
Nominal diameter
[mm]
Approximate linear weight
[kg/km]
0,25 14 x 0,15 78,6 0,6 1,9 5,8
0,50 16 x 0,20 39,0 0,6 2,1 8.6
0,60 19 x 0,20 32,8 0,6 2,2 9.6
0,75 24 x 0,20 26,0 0,6 2,4 12.0
1,00 32 x 0,20 19,5 0,6 2,5 14.3
1,50 30 x 0,25 13,3 0,6 2,8 19.4
2,50 50 x 0,25 7,98 0,7 3,4 30.6
4 56 x 0,30 4,95 0,8 4,2 48.2
6 84 x 0,30 3,30 0,8 4,8 68.4
10 80 x 0,40 1,91 1,0
