SILIGAINE 15C3 iš -60 ° C iki + 250 ° C (H ir C klasės)
  • SILIGAINE 15C3 iš -60 ° C iki + 250 ° C (H ir C klasės)

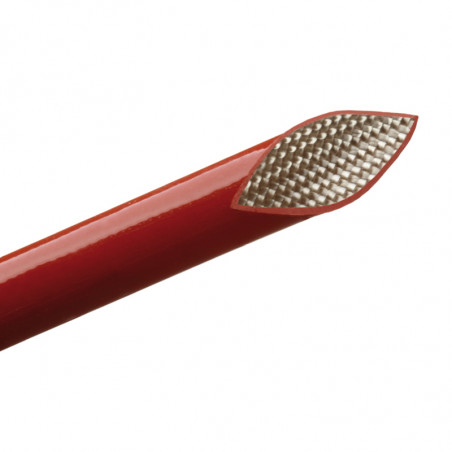

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

Gamintojas: OMERIN

SILIGAINE 15C3 iš -60 ° C iki + 250 ° C (H ir C klasės)

Technical data:
 Constant operation temperature:  -60°C - +250°C,
 Momentary temperature +290°C,
• good resistance for ozone, humidity, UV radiation
• good resistance for normal chemical environment
• can be used with impregnation lacquers class F
• non flammable,
• is very elastic
• dielectric withstand: 15C2:1,5 do 2kV, 15C3: 3 do 5kV.

Product:
• standard colour:red,
• other colours for request: white, black.

Packing:
• diameter 0,5 - 5mm - rollers 100/200m,
• diameter 6 -20mm - spools 100m,
• diameter 22 -25 - spools 50m,
• diameter 30 -35mm - spools 25m max.

Options:
• other colours - contact us.
 Other diameters - contact us.

Application:
- motors, transformers, alternators, generators,
- Devices which operate in high temperatures up to 250°C.



Internal value

SILIGAINE 15C2

SILIGAINE 15C3

Nominal value
[mm]
