Siligaine 15C4.d nuo 60 ° C iki + 200 ° C (H klasė)
Siligaine 15C4.d nuo 60 ° C iki + 200 ° C (H klasė)

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: OMERIN

Siligaine 15C4.d nuo 60 ° C iki + 200 ° C (H klasė)

SILIGAINE 15C4.d -60°C to +200°C (klasa H)

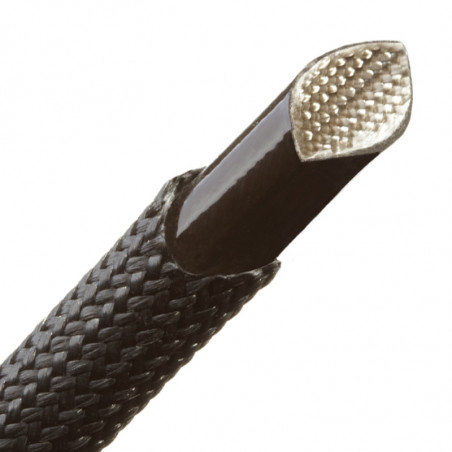

15C4.d FIBREGLASS BRAIDED SLEEVING WITH SILICONE RUBBER COATING

Characteristics
• Continuous operating temperature: -60 °C to +200 °C.
• Good resistance to humidity, ozone and UV.
• Good resistance to common chemical environments.
• Compatible with most impregnation varnishes class H.
• Very good resistance to abrasion.
• Halogen-free.
• Dielectric strength (dry): > 4 kV.

Standard products
• Colour: black

Packaging
• Diameters from 4 to 10 mm: 100 m spools.
• Diameters from 12 to 16 mm: 50 m spools.
• Diameters from 18 to 22 mm: 25 m spools.

Standards
• IEC 60684-1 and 60684-2.
• IEC 60684-3 part 400 to 402.

Applications
• Internal cabling for rotating machines class H (motors, alternators, generators, transformers, inductors, etc.).
• All insulations up to 200 °C permanent in the electric and electronic constructions, heating appliances, lighting, automobile, measuring, control, etc.

Options
• Other diameters: contact us.
• Other colours: contact us.
• Sleevings cut to length: contact us.


INTERNAL DIAMETER SILIGAINE 15C4.d
Nominal value (mm) Tolerancja [mm]Tolerance (mm) 1st braid Approximate wall thickness (mm) 2nd braid Approximate wall thickness (mm) Approximate linear weight (kg/km)
4 ± 0.25 0.60 0.45 8.1
6 ± 0.25 0.60 0.45 19.9
8 ± 0.25 0.60 0.45 37.0
10 ± 0.50 0.80 0.45 59.3
12 ± 0.50 0.80 0.45 86.8
14 ± 1.0 0.80 0.45 120
16 ± 1.0 0.90 0.50 158
18 ± 1.0 1.00 0.50 201
20 ± 1.0 1.00 0.60 249
22 ± 1.0 1.00 0.60 303
