Gamintojas: SALTEK

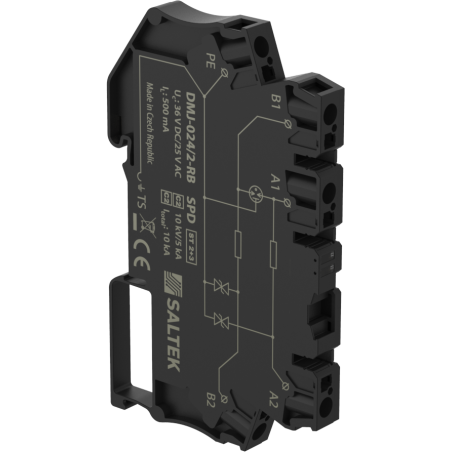

DMJ-024/2-RB - Viršįtampių ribotuvas (SPD)

  • DMJ-024/2-RB
  • Nominali įtampa 24 V DC
  • Apsaugos laipsnis IP 20
  • SPD tipas C2,C3
  • Didžiausia darbinė įtampa 25.00 V AC
Parameter name Parameter value
Type of SPD C2,C3
Location of SPD ST 2+3
Mounting DIN rail 35 mm
Nominal voltage Un 24 V DC
Maximum operating voltage Uc 25.00 V AC
Maximum operating voltage Uc 36.00 V DC
Nominal load current IL 0.500 A
Treshold frequency core-core f 4.00 MHz
Serial resistance per core R 1.60 Ω
D1 impulse discharge current (10/350 µs) per core Iimp 0.50 kA
D1 total discharge current (10/350 µs) cores-PE ITotal 1.00 kA
C2 nominal discharge current (8/20 µs) per core In 5.00 kA
C2 total discharge current (8/20 µs) cores-PE ITotal 10.00 kA
C2 voltage protection level mode core-PE at In Up 65 V
C3 voltage protection level mode core-PE at 1 kV/µs Up 45 V
Response time core-PE ta 1 ns
Connection (input - output) screwless terminals/screwless terminals
Cross-section of connected conductors solid (min) 0.08 mm2
Cross-section of connected conductors solid (max) 4.00 mm2
Cross-section of connected conductors stranded (min) 0.08 mm2
Cross-section of connected conductors stranded (max) 2.50 mm2
Degree of protection IP 20
Range of ambient temperatures (min/max) -40 / 70 °C
According to standard EN 61643-21+A1,A2:2013, IEC 61643-21+A1,A2:2012
ETIM Class EC001625
Customs tariff number 85363010
EAN 8595090560661
