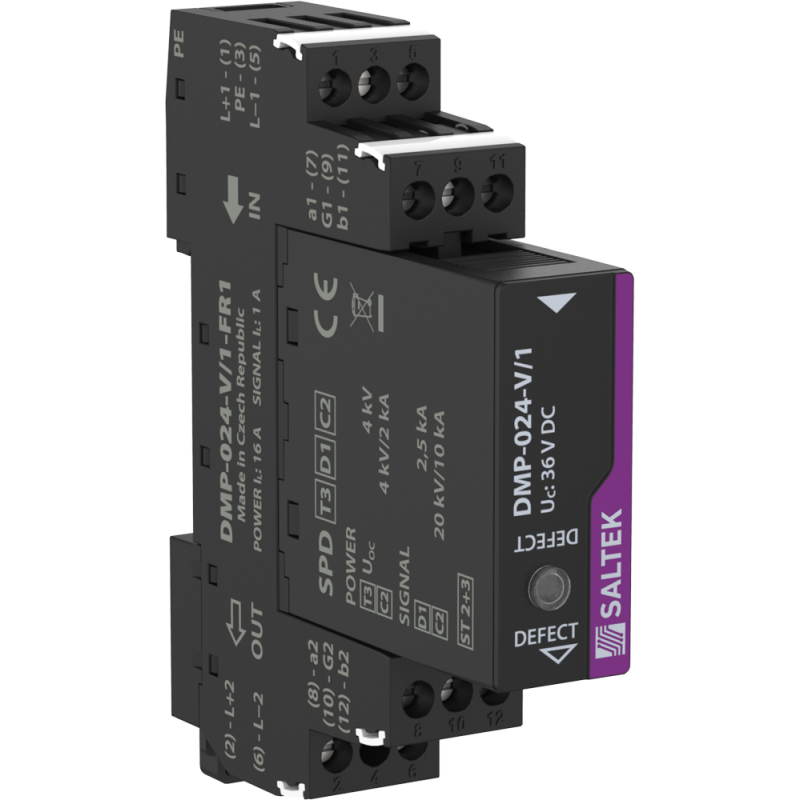

DMP-024-V/1-FR1 - Viršįtampių ribotuvas (SPD)

  • DMP-024-V/1-FR1
  • Nominali įtampa 24 V AC
  • Apsaugos laipsnis IP 20
  • Didžiausia darbinė įtampa 25.00 V AC
Parameter name Parameter value
Cross-section of connected conductors solid (min) 0.14 mm2
Cross-section of connected conductors solid (max) 4.00 mm2
Cross-section of connected conductors stranded (min) 0.14 mm2
Cross-section of connected conductors stranded (max) 2.50 mm2
Fault indication red indicator
Degree of protection IP 20
Range of ambient temperatures (min/max) -40 / 70 °C
Humidity 5 - 95 %
According to standard EN 61643-21+A1,A2:2013, IEC 61643-21+A1,A2:2012
ETIM Class EC001473
Plug module DMP-024-V/1-0
Nominal voltage Un 24 V AC
Maximum operating voltage Uc 25.00 V AC
Maximum operating voltage Uc 36.00 V DC
Nominal load current IL 16.000 A
Maximum overcurrent protection 16 A gL/gG nebo B 16 A
C2 nominal discharge current (8/20 µs) core-core In 2.00 kA
Test voltage L+ - L- 4.0 kV
Test voltage L+(L-)-PE 4.0 kV
Test voltage M-PE 4.0 kV
voltage protection level L+ - L- 0.13 kV
voltage protection level L+(L-)-PE 0.95 kV
voltage protection level M-PE 0.75 kV
C2 voltage protection level mode M-PE at In 750.00 V
C2 voltage protection level mode core-PE at In Up 950 V
C2 voltage protection level mode core-core at In Up 230 V
Response time L+ - L- 25 ns
Response time L+(L-)-PE 100 ns
Response time M-PE 100 ns
Nominal voltage Un 24 V DC
Maximum operating voltage Uc 25.00 V AC
Maximum operating voltage Uc 36.00 V DC
Nominal load current IL 1.000 A
Treshold frequency core-core f 4.00 MHz
Serial resistance per core R 0.80 Ω
C2 nominal discharge current (8/20 µs) GND-PE 10.00 kA
C2 nominal discharge current (8/20 µs) per core In 10.00 kA
C2 total discharge current (8/20 µs) cores-PE ITotal 20.00 kA
C3 nominal discharge current (10/1000 µs) GND-PE 10.00 A
C3 nominal discharge current (10/1000 µs) core-PE 10.00 A
C3 nominal discharge current (10/1000 µs) core-core In 10 A
C3 voltage protection level mode GND-PE at 1 kV/µs 550.00 V
C3 voltage protection level mode core-GND at 1 kV/µs 46.00 V
C3 voltage protection level mode core-core at 1 kV/µs Up 46 V
Response time core-core ta 1 ns
Response time core-GND 1 ns
Response time GND-PE 100 ns
Customs tariff number 85363010
EAN 8595090557999
