Gamintojas: SALTEK

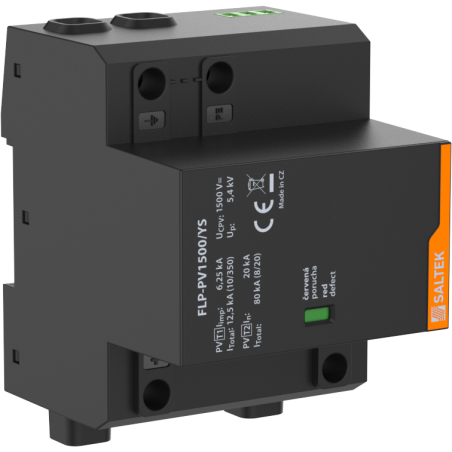

FLP-PV1500/YS - Viršįtampių ribotuvas (SPD)

  • FLP-PV1500/YS
  • Apsaugos laipsnis IP 20
  • SPD tipas PV T1, PV T2
  • Nuotolinė indikacija potential-free change-over contact
  • Bendroji iškrovos srovė (10/350 µs) 6.25 kA
Parameter name Parameter value
Type of SPD PV T1, PV T2
Mounting DIN rail 35 mm
Maximum operating voltage mode +/PE, -/PE UCPV 1 500.00 V DC
Short-circuit current rating ISCPV 10 000 A DC
Residual current mode +/PE, -/PE IPE 0.100 mA AC
Residual current mode +/PE, -/PE IPE 0.010 mA DC
Total discharge current (10/350 µs) ITotal(10/350) 12.50 kA
Lightning impulse current (10/350 µs) Iimp 6.25 kA
Total discharge current (8/20 µs) ITotal(8/20) 80.00 kA
Nominal discharge current (8/20 µs) In 20.00 kA
Maximum discharge current (8/20 µs) Imax 40.00 kA
Voltage protection level mode +/- Up 5.40 kV
Voltage protection level mode +/PE, -/PE Up 5.40 kV
Response time ta 25 ns
Cross-section of connected conductors solid (min) 4.00 mm2
Cross-section of connected conductors solid (max) 35.00 mm2
Cross-section of connected conductors stranded (min) 2.50 mm2
Cross-section of connected conductors stranded (max) 25.00 mm2
Cross-section of remote indication conductors solid (max) 1.5 mm2
Cross-section of remote indication conductors stranded (max) 1.5 mm2
Fault indication red indication field
Remote indication potential-free change-over contact
Remote indication contacts 250V/0,5A AC,250V/0,1A DC
Degree of protection IP 20
Range of ambient temperatures (min/max) -40 / 80 °C
According to standard EN 61643-31, IEC 61643-31
ETIM Class EC001457
Customs tariff number 85363090
EAN 8595090541974
