Tiesūs poliuretaniniai laidai
  • Tiesūs poliuretaniniai laidai

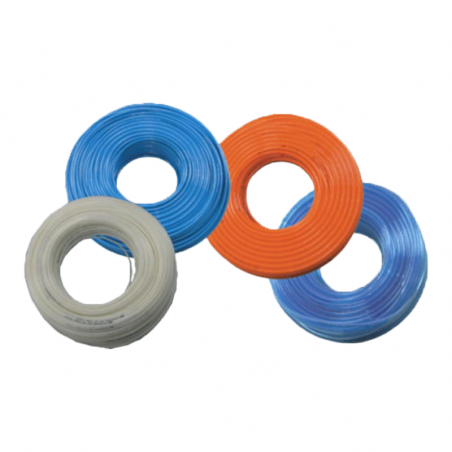

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: AirTAC

Tiesūs poliuretaniniai laidai

- Wires compatible with ROHS.
- high flexibility, small bending radius .
- Long life time
- High medium flow.


Code External diameter. [mm] Internal diameter. [mm] Wall thickness
[mm]		 Roller [m] Operation pressure at 23°c [bar] Max pressure @ 23°c [bar] Bending radius[mm] Weight 100m [kg] temperature [°c]
US98A040025_ 200 4.0 2.5 0.75 200 8.0 35 10 0.94 -20 - +70
US98A060040_ 200 6.0 4.0 1.00 200 7.5 30 15 1.93
US98A080050_ 100 8.0 5.0 1.50 100 8.0 35 20 3.66
US98A080055_ 100 8.0 5.5 1.25 100 6.0 24 20 3.25
US98A080060_ 100 8.0 6.0 1.00 100 4.0 16 25 2.70
US98A100065_ 100 10.0 6.5 1.75 100 8.0 32 25 5.44
US98A100080_ 100 10.0 8.0 1.00 100 2.5 10 40 3.47
US98A120080_ 100 12.0 8.0 2.00 100 7.5 30 35 7.56
US98A120100_ 100 12.0 10.0 1.00 100 2.0 8 60 4.24
US98A160120_ 100 16.0 12.0 2.00 100 7.5 30 80 8.32
UE95A040025_ 200 4.0 2.5 0.75 200 8.0 33 8 0.94 -40 - +70
UE95A060040_ 200 6.0 4.0 1.00 200 7.0 28 12 1.91
UE95A080050_ 100 8.0 5.0 1.50 100 8.0 33 17 3.58
UE95A080055_100 8.0 5.5 1.25 100 6.0 22 17 3.18
UE95A080060_ 100 8.0 6.0 1.00 100 3.7 15 20 2.64
UE95A100065_ 100 10.0 6.5 1.75 100 7.5 30 20 5.32
UE95A100080_ 100 10.0 8.0 1.00 100 2.2 9 36 3.39
UE95A120080_ 100 12.0 8.0 2.00 100 7.0 28 30 7.27
UE95A120100_ 100 12.0 10.0 1.00 100 1.8 7 54 4.08
UE95A160120_ 100 16.0 12.0 2.00 100 7.0 30 75 8.13


Code
US98A 060 040 100M BU
Model External diameter. External diameter. Roller Colour
  4.0mm : 040 2.5mm : 025 100M : 100m BU: Blue
6.0mm : 060 4.0mm : 040 200M : 200m BK: black
8.0mm : 080 5.0mm : 050   GE: orange
10.Omm : 100 5.5mm : 055 CR: transparent
12.0mm : 120 6.0mm : 065 R: red
16.0mm : 160 8.0mm : 080 Y: yellow
  10.0mm : 100 WH: white
12.0mm : 120 CB: blue transparent
