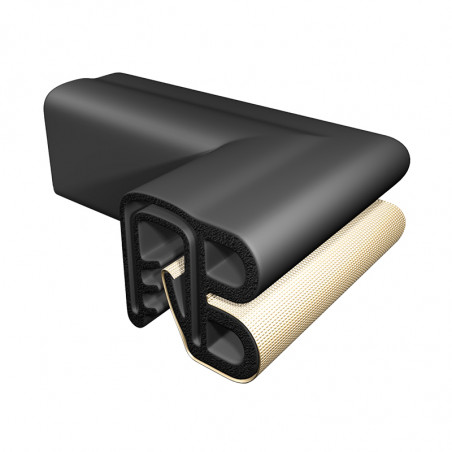

EMC EPDM IP65 EDGE tarpikliai
  • EMC EPDM IP65 EDGE tarpikliai

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: SOLIANI

EMC EPDM IP65 EDGE tarpikliai

Market requirements permit us to offer different gaskets that cover the double function of watertight seals and electromagnetic interference shielding. An initial demand was for a gasket that was of a self-blockingtype to be installed directly on plate moulding. Gaskets with codes A3208, A3213 e A3213-L, are those we offer for this type of application.

Materials
Material: Support:: soft EPDM
Gasket: soft EPDM sponge rubber
Colour: Black
Hardness: Support: 60 +/- 5 Shore A
Gasket:: density : 0,55+/- 0,05 g/cm3
Metal carrier: wire carrier 32x0,76 mm
Clamping range: 1.0 – 3.0mm
Operation temperature: -40 - 100OC
UV-stability: good
Resistance against: alcohols, ozone, weathering, lyes and low acids.
Non-resistant against: carbon hdyrochlorides, concenctrated acids, armatics carbons, olil and fuels.




Available profiles


Order example

Example: A3213-L-E-SC 1006X881MM CORNICE TERMOSALDATA
A3208-2 765,3X835 MM CORNICE TERMOFUSA

Dimensions


A 3208 A 3213
Minimum Bending Radius
A 3208 A 3213
a=60 a=60
b=150 b=60
c=50 c=100
d=50 d=60

Take note that the minimum bending radiigiven may be used only as guide lines since, depending on the material, at full or limited utilization of the clamping area indicated. Deviations may be experienced. Tolerances of the product are defined according to “IO_PRD1_02 Parameters and Tolerances - Ed. 3



  Magnetic field (dB) Electric field (dB)
Frequency (MHz)) 3 10 20 30 2 10 20 30
1 layer 15 20 30 40 105 65 62 65

  Electric field and plane wave ( dB) Plane Wave (dB)
Frequency (MHz) 200 400 500 600 700 800 900 1000 3000 5000 10000 15000 18000
1 layer 55 65 60 62 60 70 60 60 62 63 53 53 55
