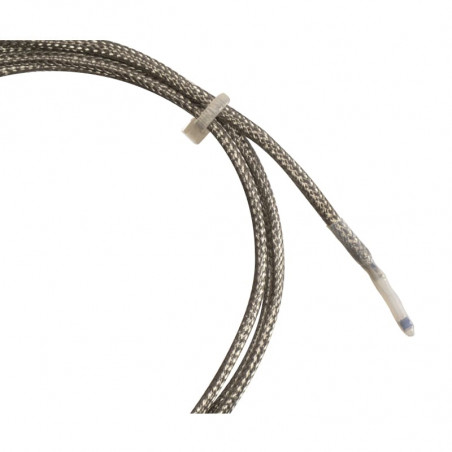

Varžos jutiklis ACT-31

Easiest resistance sensor used for very precise temperature measurement of any environment. The only limit is:
- Temperature range, depends on connection cable insulation. (PCV – up to +120°C, teflon – up to +150°C, silicon – up to +180°C, fibre glass – 400°C).

SPECIFICATION

SENSOR TECHNICAL PARAMETERS
Measurement resistorVersionCharacteristicMeasurement rangeAccuracy classMax measurement currentConnection typeTime constant
T0,5
1xPt100
2xPt100
normal shockproof according to PN-EN-60751 od -50°C
do +250°C
B 8 mA 2 cables ≤ 5s
A 5 mA 3, 4
cables
-50°C+150°C 1/3 B DIN 2 mA

Connection cable
DiameterŚrednicaTypeSkładOperation temperatureCable length LK
2-cables Ø2.9 L2GGD-2xO,22mm2 fibre glass +400°C arbitrary
3, 4 cables  Ø3.1 L4GGD-4xO,22mm2 fibre glass +400°C
2-cables Ø4.2 L2TS-3x0,34mm2 teflon, silicon +180°C
3, 4 cables Ø4.3 L4TTS-4xO,25mm2 teflon, silicon +180°C



Marking:
A. Resistor type
A

Single
1xPt100

Double
2xPt100
B. Accuracy class
B

B
B

A
A

1/3 B DIN
1/3 B DIN
C. Connection and cable type
C

2 – cables L2GGD
2p-L2GGD

3 – cables L4GGD
3p-L4GGD

4 – cables L4GGD
4p-L4GGD

2 – cables L2TS
2p-L2TS

3 – cables L4TS
3p-L4TS

4 – cables L4TS
4p-L4TS
D. Resistor dimensions
D

d x L
give in mm
E. Cable length
F

LK
give in mm
F. Sensor type
H

normal
Z

shockproof
W

Caution
There are Non-standard models.
.
