Gamintojas: SALTEK

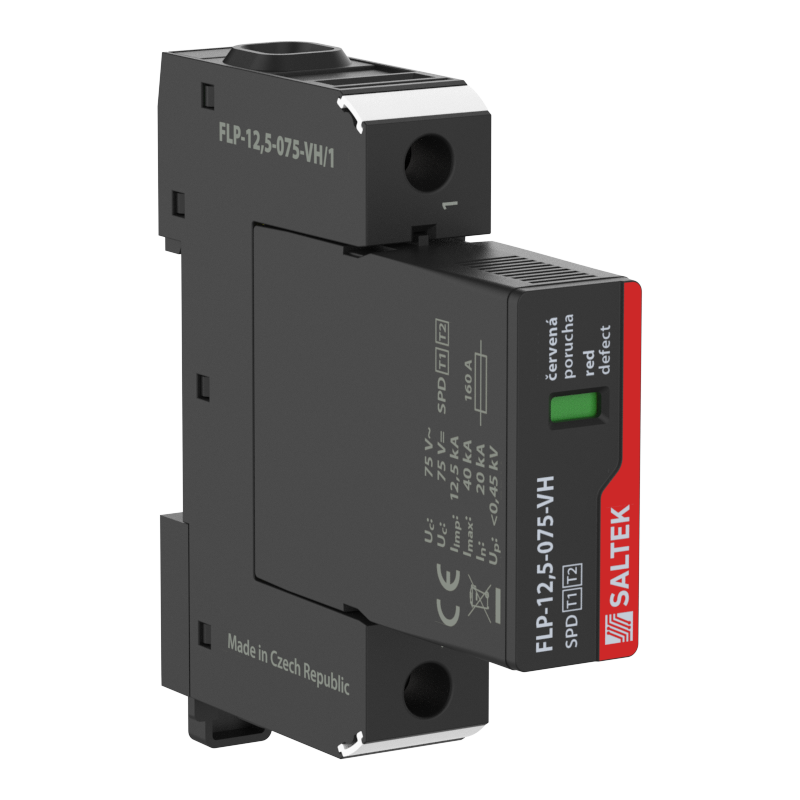

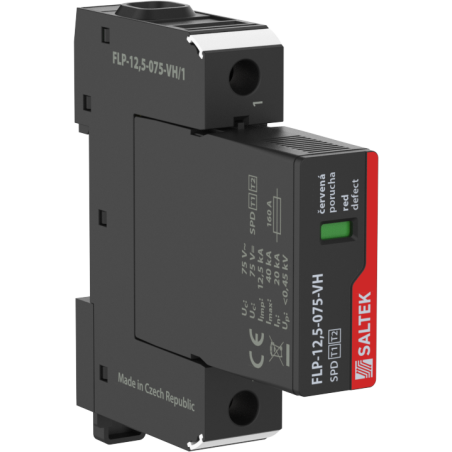

FLP-12,5-075-VH/1 - Viršįtampių ribotuvas (SPD)

  • FLP-12,5-075-VH/1
  • Nominali įtampa 48÷60 V AC/DC
  • Apsaugos laipsnis IP 20
  • SPD tipas T1,T2
  • Tinklo tipas TN
  • Bendroji iškrovos srovė (10/350 µs) 12.50 kA
  • Didžiausia darbinė įtampa 75.00 V AC
Parameter name Parameter value
Type of SPD T1,T2
Mounting DIN rail 35 mm
Nominal voltage Un 48÷60 V AC/DC
Maximum operating voltage Uc 75.00 V AC
Maximum operating voltage Uc 75.00 V DC
Type of network TN
Maximum overcurrent protection 160 A gL/gG
Short-circuit current rating ISCCR 25.0 kA
Lightning impulse current (10/350 µs) Iimp 12.50 kA
Nominal discharge current (8/20 µs) In 20.00 kA
Maximum discharge current (8/20 µs) Imax 40.00 kA
Voltage protection level Up 0.45 kV
Response time ta 25 ns
Cross-section of connected conductors solid (min) 1.00 mm2
Cross-section of connected conductors solid (max) 35.00 mm2
Cross-section of connected conductors stranded (min) 1.00 mm2
Cross-section of connected conductors stranded (max) 25.00 mm2
Fault indication red indication field
Degree of protection IP 20
Range of ambient temperatures (min/max) -40 / 80 °C
Humidity 5 - 95 %
According to standard EN 61643-11:2012, IEC 61643-11:2011
ETIM Class EC000381
Plug module FLP-12,5-075-VH/0
Customs tariff number 85363030
EAN 8595090541684
