Gamintojas: SALTEK

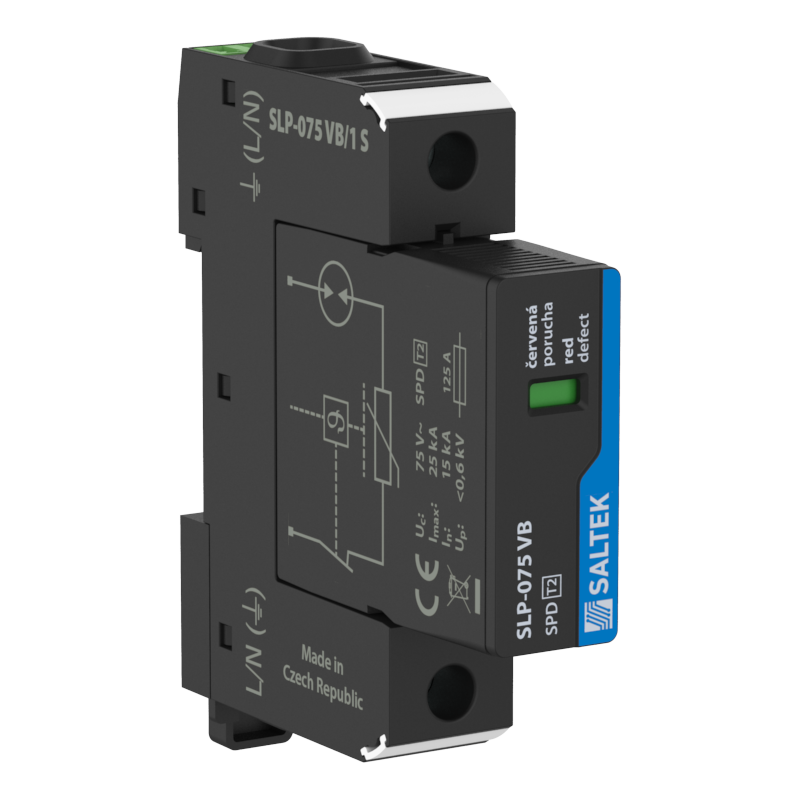

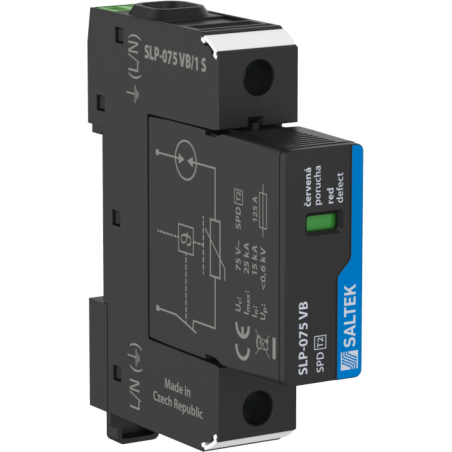

SLP-075 VB/1 S - Viršįtampių ribotuvas (SPD)

  • SLP-075 VB/1 S
  • Apsaugos laipsnis IP 20
  • SPD tipas T2
  • Tinklo tipas TN
  • Nuotolinė indikacija potential-free change-over contact
  • Didžiausia darbinė įtampa 75.00 V AC
Parameter name Parameter value
Type of SPD T2
Mounting DIN rail 35 mm
Maximum operating voltage Uc 75.00 V AC
Maximum operating voltage Uc 100.00 V DC
Type of network TN
Maximum overcurrent protection 125 A gL/gG
Short-circuit current rating ISCCR 35.0 kA
Nominal discharge current (8/20 µs) In 15.00 kA
Maximum discharge current (8/20 µs) Imax 25.00 kA
Voltage protection level Up 0.60 kV
Voltage protection level at 5 kA Up 0.30 kV
Response time ta 100 ns
Cross-section of connected conductors solid (min) 1.00 mm2
Cross-section of connected conductors solid (max) 35.00 mm2
Cross-section of connected conductors stranded (min) 1.00 mm2
Cross-section of connected conductors stranded (max) 25.00 mm2
Cross-section of remote indication conductors solid (max) 1.5 mm2
Cross-section of remote indication conductors stranded (max) 1.5 mm2
Fault indication red indication field
Remote indication potential-free change-over contact
Remote indication contacts 250V/0,5A AC,250V/0,1A DC
Degree of protection IP 20
Range of ambient temperatures (min/max) -40 / 80 °C
Humidity 5 - 95 %
According to standard EN 61643-11:2012, IEC 61643-11:2011
ETIM Class EC000941
Plug module SLP-075 VB/0
Customs tariff number 85363030
EAN 8595090521563
