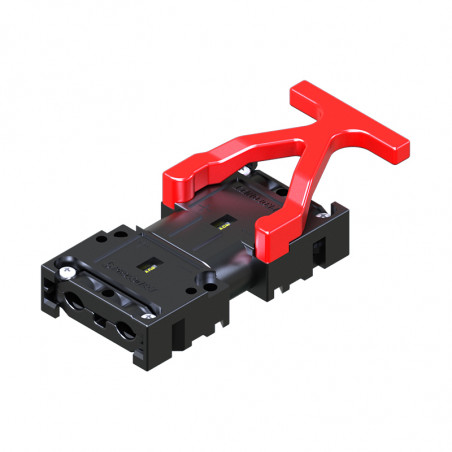

Belaidis NF 100 Akumuliatoriaus jungtis
  • Belaidis NF 100 Akumuliatoriaus jungtis

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: Proconect

Belaidis NF 100 Akumuliatoriaus jungtis

Battery connector NF 100

Characterictics:

  • Voltage: 150V DC max
  • Amperage: 100A
  • Temperature range: -20°C / +90°C
  • Housing: acidproof plastic
  • Contacts: copper alloy, silver plated, (to crimp or to solder)
  • Amperage of auxiliary contact: 20 A
  • Section of auxiliary contact: 2,5 mm2 i 4 mm2
  • Watertightness: IP23
  • Normes: NF EN 1175-1 and DIN VDE 0623-589

Complete connectors:

  Ref. Description Section
mm2 AWG
Connector 169120 Male 16 6
169121 Male 25 4
169122 Male 35 2
Connector 169123 Female 16 6
169124 Female 25 4
169125 Female 35 2
Auxiliary contacts
 169126 Male - 20 A 2.5 14
169127 Female - 20 A 2.5 14
Air contacts 169144 Male -
169145 Female -
Handle 169128-R Red color -

Spare parts:

  Ref.
 Description
 Section
mm2 AWG
Contact 169138 Male 16 6
169140 Male 25 4
169142 Male 35 2
Contact 169139 Female 16 6
169141 Female 25 4
169143 Female 35 2
Housing 169136 Male -
169137 Female
Voltage coding key 169088 Black color wet battery -
169089 Grey color gel battery

NF 100 Male

NF 100 Female

NF 100 Connector
