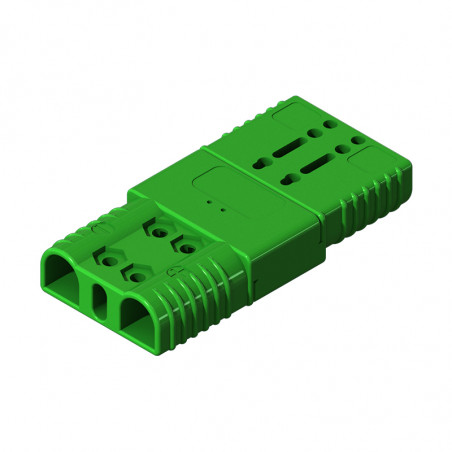

CBX serijos akumuliatoriaus jungtis
  • CBX serijos akumuliatoriaus jungtis

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: Proconect

CBX serijos akumuliatoriaus jungtis

Battery connector Series CBX



Characteristics

  • Voltage: 600V max.
  • Amperage: 175 A, 350 A
  • Temperature range: -40° / + 120° C
  • Housing: polycarbonate or polyamide acids, bases and hydrocarbons proof
  • Contacts: electrolytic copper, galvanic silvering, anti-corrosion protection (to crimp or to solder)
  • Springs: stainless steel





  Grey Blue  Orange Yellow Red Green Black Section:
mm2 AWG
CBX175 159110
159111		 159120
159121		 159130
159131		 159140
159141		 159150
159151		 159160
159161		 159190
159191		 50
35		 1/0
2
+ set of 2 auxiliary constacts 159113 159123 159133 159143 159153 159163 159193 50 1/0
CBX 350 159210 159220 - 159240 159250 159260 159290 70 2/0
+ set of 2 auxiliary constacts 159213 159223 - 159243 159253 159263 159293 70 2/0

Handle:

  Ref. Color
CBX 175 165370 Red
165380 Grey
CBX 350 165371 Red
165381 Grey

Spare parts:

  CBX 175 CBX 350
Housings:
Grey 166310 166320
Blue 166311 166321
Orange 166312 -
Yellow 166313 166323
Red 166314 166324
Zielona 166315 166325
Black 166316 166326
Other:
Set of 2 contacts 35 mm2 166131 -
Set of 2 contacts 50 mm2 166130 -
Set of 2 contacts 70 mm2 - 166340
Reducer 50 mm2 / 25 mm2 166133 -
Auxiliary contacts 2,5 mm2 159300 159300
Air contacts 159350 159350

CBX 175

CBX 350
