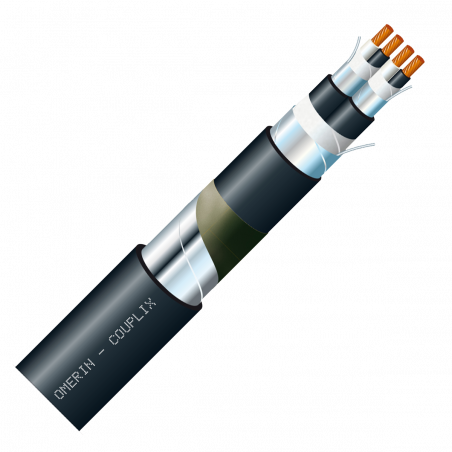

COUPLIX - подовжувачі і компенсації

Drawing	Extension symbol and compensation	Insulation reference COUPLIX	Cable shape	Insulation		Insulation operating temperature
				wire	jacket
	All type	MY2-Y2  MC-CS	round round	PVC 105°C silicon	PVC 105°C silicon	- 30 to + 105°C - 60 to + 200°C
	All type	MY2BE-Y2 MCBE-C	round round	PVC 105°C silicon	Screen (tin-plated copper braid) + PVC 105 °C Screen (tin-plated copper braid) + silicone	- 30 to + 105°C - 60 to + 200°C
	All type	MY2BAL-Y2 MCBAL-CS	round round	PVC 105°C silicon	Screen (PET/aluminium tape) + PVC 105 °C Screen (PET/aluminium tape) + silicone	- 30 to + 105°C - 60 to + 200°C
	All type	MC-FEP	round	FEP	silicon	- 60 to + 205°C
	All type	MCBE-FEP	round	FEP	Screen (tin-plated copper braid) + silicone	- 60 to + 205°C
	All type	M6-6 M5-5	round round	FEP PFA	FEP PFA	- 190 to + 205°C - 190 to + 260°C
	All type	M6BE-6 M5BE-5	round round	FEP PFA	Screen (tin-plated copper braid) / FEP Screen (tin-plated copper braid) / PFA	- 190 to + 205°C - 190 to + 260°C
	All type	MV-PFA	flat	PFA	Fibreglass	- 60 to + 260°C
	All type	BGMV-CS	flat	silicon	Fibreglass + Galvanised steel braid	- 60 to + 220°C
	All type	MV-VS MV-VS-R	flat flat	Fibreglass High temperature fibreglass	Fibreglass High temperature fibreglass	- 60 to + 300°C - 60 to + 400°C
	All type	BGMV-VS BIM-VS	round round	Fibreglass Fibreglass	Fibreglass + Galvanised steel braid Fibreglass + Stainless steel braid	- 60 to + 300°C - 60 to + 300°C
	All type	BGMV-FEP BIMV-PFA	round round	FEP PFA	Fibreglass + Galvanised steel braid Fibreglass + Stainless steel braid	- 60 to + 205°C - 60 to + 260°C
	All type	MVK-KVS	round	Polyimide / Fibreglass	Polymide / Fibreglass	-60 to +350°C

Standard products

• Our main products are described on the next page.
• The main cables we manufacture are bipolar (1 positive / 1 negative conductor).
• Possible separating tapes are not illustrated. They are nonetheless included in the cable in certain cases to facilitate production or use of the cable (separating tapes between electrical screen and conductors, between insulation and sheath, etc.).
• Outer diameters: contact us.
• When cables feature an outer braid made of galvanised steel or stainless steel, identification using coloured spiral tracers is optional.

Options

• Other cross-sections and stranding: contact us.
• Other insulation: contact us.
• Multi-pair cables, with or without individual screens, with or without general screens: contact us.
• Hybrid cables: contact us.

1 - Registered trademark of OMERIN
2 - Extension or compensation symbols
3 - Insulation reference (see main products on next page)
4 - Applicable standard for colour code (see table of standardised colour codes)
5 - 2 x: bipolar cable n p: cable with n pairs
6 - Core cross-section in mm2 or AWG
7 - Number of strands
8 - Diameter of each strand (in mm)
