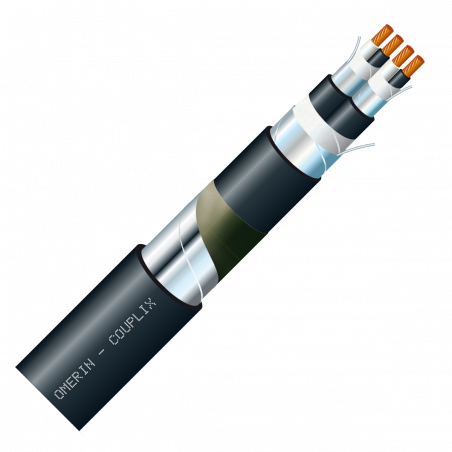

COUPLIX - lengthen and compensating wires

COUPLIX - lengthen and compensating wires

Extension and compensation cables, main products

DrawingExtension symbol and compensationInsulation reference COUPLIXCable shapeInsulationInsulation operating temperature
wirejacket
All type

MY2-Y2
MC-CS

round round PVC 105°C
silicon
PVC 105°C
silicon
- 30 to + 105°C
- 60 to + 200°C
All type

MY2BE-Y2
MCBE-C

round
round
PVC 105°C
silicon
Screen (tin-plated copper braid) + PVC 105 °C Screen (tin-plated copper braid) + silicone - 30 to + 105°C
- 60 to + 200°C
All type

MY2BAL-Y2 MCBAL-CS

round round PVC 105°C
silicon
Screen (PET/aluminium tape) + PVC 105 °C Screen (PET/aluminium tape) + silicone - 30 to + 105°C
- 60 to + 200°C
All type

MC-FEP

round FEP silicon - 60 to + 205°C
All type

MCBE-FEP

round FEP Screen (tin-plated copper braid) + silicone - 60 to + 205°C
All type

M6-6
M5-5

round
round
FEP
PFA
FEP
PFA
- 190 to + 205°C
- 190 to + 260°C
All type

M6BE-6 M5BE-5

round round FEP
PFA
Screen (tin-plated copper braid) / FEP Screen (tin-plated copper braid) / PFA - 190 to + 205°C
- 190 to + 260°C
All type

MV-PFA

flat PFA Fibreglass - 60 to + 260°C
All type

BGMV-CS

flat silicon Fibreglass + Galvanised steel braid - 60 to + 220°C
All type

MV-VS
MV-VS-R

flat flat Fibreglass High temperature fibreglass Fibreglass High temperature fibreglass - 60 to + 300°C
- 60 to + 400°C
All type

BGMV-VS
BIM-VS

round round Fibreglass Fibreglass Fibreglass + Galvanised steel braid Fibreglass + Stainless steel braid - 60 to + 300°C
- 60 to + 300°C
All type

BGMV-FEP BIMV-PFA

round round FEP
PFA
Fibreglass + Galvanised steel braid Fibreglass + Stainless steel braid - 60 to + 205°C
- 60 to + 260°C
All type

MVK-KVS

round Polyimide / Fibreglass Polymide / Fibreglass -60 to +350°C


Conductive cores, stranding
Cross-section (mm²)Cross-section AWGStranding
0,22 24 7 x 0.20
0,22 24 3 x 0.30
0,34 22 1 x 0.65
0,34 22 5 x 0.30
0,5 20 1 x 0.80
0,5 20 7 x 0.30
0,5 20 16 x 0.20
0,75 - 11 x 0.30
1 18 14 x 0.30
1,34 16 19 x 0.30
1,5 - 21 x 0.30


Standard products

  • Our main products are described on the next page.
  • The main cables we manufacture are bipolar (1 positive / 1 negative conductor).
  • Possible separating tapes are not illustrated. They are nonetheless included in the cable in certain cases to facilitate production or use of the cable (separating tapes between electrical screen and conductors, between insulation and sheath, etc.).
  • Outer diameters: contact us.
  • When cables feature an outer braid made of galvanised steel or stainless steel, identification using coloured spiral tracers is optional.

Options

  • Other cross-sections and stranding: contact us.
  • Other insulation: contact us.
  • Multi-pair cables, with or without individual screens, with or without general screens: contact us.
  • Hybrid cables: contact us.

Identification
PRZEWODY PRZEDŁUŻAJĄCE I KOMPENSACYJNE oznaczenia

1 - Registered trademark of OMERIN
2 - Extension or compensation symbols
3 - Insulation reference (see main products on next page)
4 - Applicable standard for colour code (see table of standardised colour codes)
5 - 2 x: bipolar cable n p: cable with n pairs
6 - Core cross-section in mm2 or AWG
7 - Number of strands
8 - Diameter of each strand (in mm)
