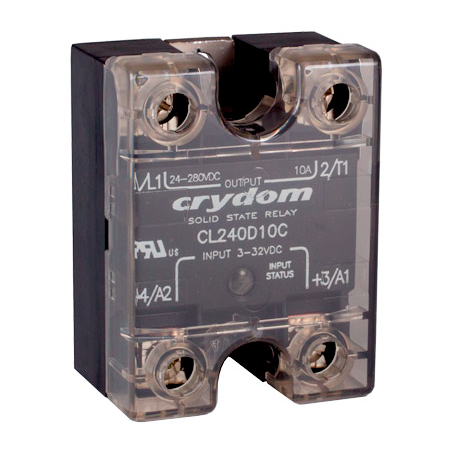

Фотографії призначені тільки для інформаційних цілей. Подивитися специфікацію продукту

please use latin characters

Виробник: Crydom

Серія CL

Features

  • Range from 5A to 10A at 24-280 V AC
  • Triac output
  • LED status indicator
  • UL approved, CE compliant with EN60950-1
  • Upgraded SEMS screws and washer
  • Redesigned housing with anti-rotation barriers
  • AC or DC control
  • EMC compliance up to level three
  • Epoxy-free construction

Product Selection

Control Voltage 5A 10A
3-32 VDC CL240D05 CL240D10
90-250 VAC CL240A05 CL240A10


Order Options

Series
CL
Load Voltage
240: 24-280 VAC
Control Voltage
A: 90-250 VAC D: 3-32 VDC
Rated Load Current
05: 5 Amperes10: 10 Amperes
Mounting
Blank: Screws and terminals includedK: Pre-assembled PCB mounting brackets (IP00 only)
Switching Type
Blank: Zero-crossingR: Instant-on
Cover
Blank: Not included (IP00)C: Included (IP20)
Thermal Pad
Blank: Not includedH: Included


Required for valid part number
Only optional and not required for a valid part number

Output Specification

Description 5A 10A
Operating Voltage (47-63Hz) [Vrms] 24-280 24-280
Surge Voltage [Vpk] 600 600
Maximum Leakage Current at Rated Voltage [mArms] 7 7
Minimum dV/dt at Maximum Rated Voltage [V/usec] 500 500
Maximum Load Current [Adc] 5 10
Minimum Load Current [mArms] 150 150
Maximum Single Surge Current (50/60Hz) [Apk] 84/100 120/126
Maximum Voltage Drop at Rated Current [V] 1.6 1.5
Thermal Resistance Junction to Case (Rjc) [degrees Celsius/W] 2.3 2.3
Maximum I2t for Operation (½ cycle) (50/60Hz) [A2sec] 35/42 72/66
Minimum Power Factor (at Maximum Load) 0.5 0.5
Minimum Heat Dissipation Capability at Rated Current at 40 degrees Celsius [degrees Celsius/W] 3 1.5


Input Specification

Description DC Control AC Control
Control Voltage Range 3-32 VDC 90-250 VAC
Maximum Reverse Voltage -32 VDC -
Minimum Turn-On Voltage 3 VDC 90 VAC/VDC
Required Turn-Off Voltage 1 VDC 5 VAC/VDC
Minimum Input Current (for turn-on) 10 mA 6 mA
Maximum Input Current 14 mA 10 mA
Rated Input Impedance Current limited Current limited
Maximum Turn-On Time [msec] ½ cycle 20
Maximum Turn-Off Time [msec] ½ cycle 30


General Specification

Description Parameters
Dielectric Strength, Input to Output (50/60Hz) 4000 Vrms
Dielectric Strength, Input/Output to Baseplate (50/60Hz) 2500 Vrms
Minimum Insulation Resistance (at 500V DC) 109 Ohms
Maximum Capacitance, Input/Output 8pF
Ambient Temperature Range (Operating) -40 to 80 degrees Celsius
Ambient Temperature Range (Storage) -40 to 125 degrees Celsius
Weight (Typical) 81.53 g
Housing Material UL94 V-0
Baseplate Material Aluminium
Input Terminal Screw Torque (Nm) 1.5-1.7
Load Terminal Screw Torque (Nm) 2-2.2
Mounting Torque Range for SSR (Nm) 2-2.2
Mounting Torque Range Input/Load (Nm) with option K: 0.9-1.13
Thread Size Input/Output Terminal Screw #6-32 UNC / #8-32 UNC
Humidity according to IEC 60068-2-78 93% non-condensing
LED Status Indicator Green
MTBF (Mean Time Between Failures) at 40 degrees Celsius ambient temperature 11,641,553 hours (1,328 years)
MTBF (Mean Time Between Failures) at 60 degrees Celsius ambient temperature 7,210,376 hours (823 years)
