Роз'ємні з'єднувачі для нейтрального провідника для монтажних щитів з лапкою U, тип WKN

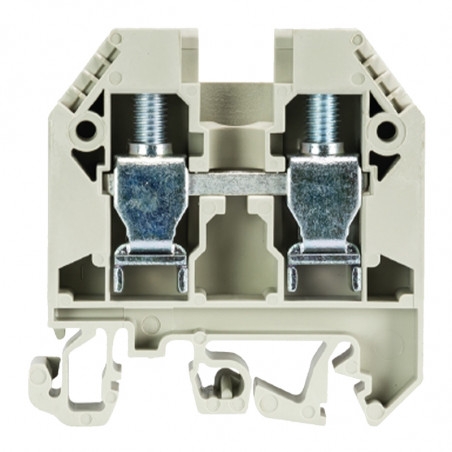

Neutral disconnectable connectors for installation switchgear, with foot U, type WKN

WKN 4 ETK / U

< td colspan = "2">< tr class = "kolb">2. Closing strip with foot U10 mmWE1 / UZ5.523.5753.0100< td style = "text-align: center">< / tr>< td style = "text-align: center">< td style = "text-align: center">< td style = "text-align: center"> Tinned busbar, 10x3

		Type	Catalog no.	Pack
Neutral detachable connectors		WKN 4 ETK / U	57.504.8155.0	100
Equipment
1. Mounting rail 35, cover rail. height 7.5 mm	L = 2 m	35x27x7.5 EN 50022	98.300.0000.0	1
Mount rail 35, cover rail. height 15 mm	L = 2 m	35x24x15 EN 50022	98.360.0000.0	1
Mounting rail 32, G rail	L = 2 m	9006 EN 50035 G-32	98.190.0000.0	1
TS 35 closing strip with screw	lat. 8 mm	9708/2 S35	Z5.522.8553.0	100
TS 32 closing strip with screw	lat. 7.5 mm	9708	Z5.522.7053.0	100
3. Closing plate, thickness 1.5 mm	color: gray
	color: blue	APN 4 ETK	07.312.1155.0	10
Cover plate th. 2 mm	color: gray
color: blue
4. Partition wall, thickness 1.5 mm	color: gray
	color: blue
Partition panel th. 2 mm	color: gray
color: blue
Partition wall th. 3 mm	color: gray
color: blue
5. Busbar holder for 10x3 busbar	w. 4 mm	WKISH / U	01.108.3255.0	10
6. E-Cu busbar, 10 x 3	L = 1 m	9813 M	98.290.0000.0	1
L = 1 m	9813 MSN	98.290.1000.0	1
7. Connection connectors, for busbar	color: no
