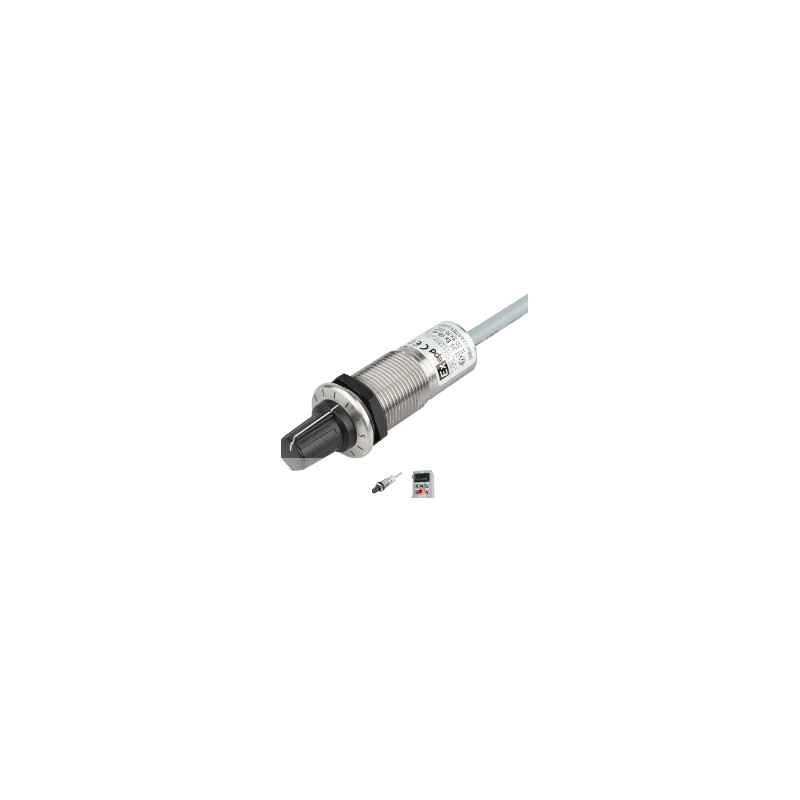

The AB1-P3 potentiometer is a reliable setpoint transmitter designed to control machines and systems in explosion-hazardous areas: Zones 1/2 and 21/22.
The high IP protection rating and corrosion-resistant stainless steel housing ensure a long service life, even in harsh environmental conditions.
Thanks to its flat design and rounded edges, the potentiometer is less susceptible to mechanical damage and dirt buildup. The elegantly engraved scale ensures excellent readability and durability, even with intensive use.
CONNECT and ACT – thanks to its approval as a device, the potentiometer can be mounted directly on the front of a machine in an Ex zone, without the need for additional certification. The low installation depth allows for exceptionally space-saving use.
The potentiometer has also been tested for installation in certified control panels with Ex e and Ex t protection.
The scope of delivery does not include a plastic lock nut.
Category | Parameter | left;">Value |
---|---|---|
Explosion-proof | Protection type | II 2G Ex db eb IIC T6 Gb II 2D Ex tb IIIC T85 °C Db |
Certificate | IBExU 22 ATEX 1083 X | |
Ambient temperature | -20 °C ... +60 °C | |
Electrical data | Operating voltage | 24 VDC |
1 kΩ, 5 kΩ, 10 kΩ ±10% | ||
Power consumption | max. 1 W | |
Connection data | Cable | 4 x 0.5 mm², Ø 5.7 mm |
(1) gray | input | |
(2) black | sliding contact | |
(3) brown | output | |
(green-yellow) | internal earth | |
Rotation angle | 295° | |
Mechanical data | Casing material | Stainless steel 1.4305 |
Seal | EPDM | |
Protection level | IP66 | |
Impact resistance | 7 Nm | |
Mounting hole | 22.0 ... 22.3 mm / M22 x 1.5 | |
Tightening torque | 8 Nm | |
Wall thickness | 1.0 ... 15.0 mm | |
Logistics data | Weight | 180 g (1.5 m cable) |
Customs code | 8533 1000 |
