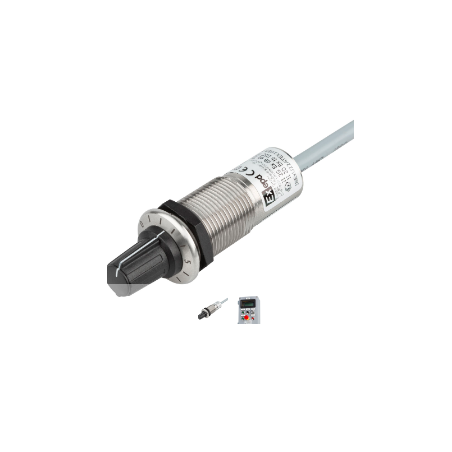

Potentiometer Exepd Type AB1-P3
Potentiometer Exepd Type AB1-P3

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: EXEPD

Potentiometer Exepd Type AB1-P3

  • AB1-P3
  • Power supply
  • ATEX

The AB1-P3 potentiometer is a reliable setpoint transmitter designed to control machines and systems in explosion-hazardous areas: Zones 1/2 and 21/22.

The high IP protection rating and corrosion-resistant stainless steel housing ensure a long service life, even in harsh environmental conditions.

Thanks to its flat design and rounded edges, the potentiometer is less susceptible to mechanical damage and dirt buildup. The elegantly engraved scale ensures excellent readability and durability, even with intensive use.

CONNECT and ACT – thanks to its approval as a device, the potentiometer can be mounted directly on the front of a machine in an Ex zone, without the need for additional certification. The low installation depth allows for exceptionally space-saving use.

The potentiometer has also been tested for installation in certified control panels with Ex e and Ex t protection.

The scope of delivery does not include a plastic lock nut.

Resistance value (linear)
Category Parameter left;">Value
Explosion-proof Protection type II 2G Ex db eb IIC T6 Gb
II 2D Ex tb IIIC T85 °C Db
Certificate IBExU 22 ATEX 1083 X
Ambient temperature -20 °C ... +60 °C
Electrical data Operating voltage 24 VDC
1 kΩ, 5 kΩ, 10 kΩ ±10%
Power consumption max. 1 W
Connection data Cable 4 x 0.5 mm², Ø 5.7 mm
(1) gray input
(2) black sliding contact
(3) brown output
(green-yellow) internal earth
Rotation angle 295°
Mechanical data Casing material Stainless steel 1.4305
Seal EPDM
Protection level IP66
Impact resistance 7 Nm
Mounting hole 22.0 ... 22.3 mm / M22 x 1.5
Tightening torque 8 Nm
Wall thickness 1.0 ... 15.0 mm
Logistics data Weight 180 g (1.5 m cable)
Customs code 8533 1000
