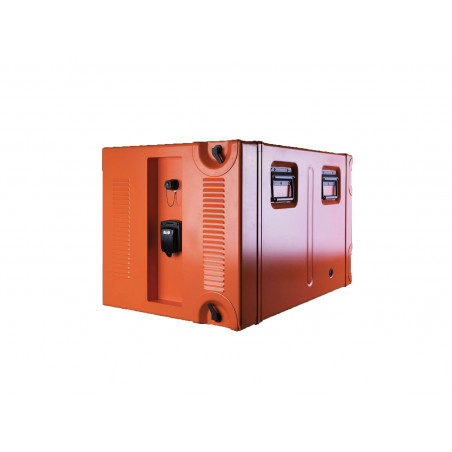

MILEX SERIES RACK TYPE TRANSPORT CASES

Made of aluminum, absorbing shocks and vibrations

The MILEX series case is a waterproof and dustproof, shock- and vibration-absorbing aluminum transit case designed for 19-inch electronics. DACPOL is also able to select subracks for this project, becoming a complete provider of this solution. MILEX products are NATO approved and designed to meet the stringent requirements of U.S. MIL specifications and other MIL standards worldwide. Along with a wide range of accessories such as cooling systems, racks, drawers, and guides, MILEX aluminum cases represent the most comprehensive line currently available for secure packaging of mobile electronics. MILEX transport cases are made exactly to customer specifications. DESAPRO has developed unique experience in custom design and manufacturing to deliver the right quality on time for the specific application.

19” MILEX Series Aluminum Transport Cases meet the rigorous requirements of the MIL-STD-810G standard and other relevant military standards for this type of product. The 19” MILEX Series Transport Cases are designed and manufactured according to specific environmental protection requirements demanded by the equipment contained and transported, ensuring maximum protection while enabling other important and desired features.

The size of the MILEX cases depends on the size of the required equipment. However, thanks to the placement of the handles, the space between the internal housing and the external shell is minimized while maintaining equal or better shock and vibration properties. This feature means that the total dimension of the MILEX housing is as small as possible without sacrificing protective properties.

Protection against external conditions:
Undesirable influences from various sources occurring during transport, storage, or operation can have a harmful effect on the device and therefore pose a significant risk. This risk can be minimized by using DESAPRO cases. DESAPRO cases protect against many environmental factors:

Protection against climatic conditions such as:

• Extreme temperatures in tropical or arctic regions
• Temperature shock under airborne conditions
• High humidity in tropical regions
• Aggressive weather conditions such as salt fog
• Sand and wind in deserts or industrial environments
• Water damage from rain or sea transport
• Solar radiation (UV rays)
• Rain, snow, hail

Protection against electrical radiation from direct or incidental high-frequency interference:

• Conducted interference
• Radiated interference

Solutions for internal equipment issues:

• Heat dissipation
• High-voltage components
• Radio frequency radiation

Protection against electrical loads such as electromagnetic interference (EMI), RFI.

MAIN COMPONENTS OF THE DESAPRO MILEX ALUMINUM TRANSPORT CASE SYSTEM

The MILEX aluminum transport case essentially consists of three main parts:

Self-supporting enclosure

Welded and rigid construction creates a self-supporting enclosure that is both lightweight and durable. The entire aluminum structure is shock-resistant and withstands extreme temperature changes, conducts electricity, and is fully recyclable. Stackable feet on the bottom and recesses on the top of the enclosure ensure stable stacking of cases. As standard, cases are equipped with a pressure equalization valve. Enclosure joints and fastening to any screw pattern are available for specific applications.

Shock-absorbing housing

The core of the transport case is a chassis mounted on shock absorbers. Depending on the model and size, the equipment can be mounted at the front or rear of the case. To maintain low weight and allow optimal ventilation, the housings are designed with large openings. The rack is connected to the housing with an electrical grounding strap.

Lid

All MILEX enclosures are protected against external factors with a screw-on lid with a gasket. Easy-to-use closures are recessed into the lid and provide a solid seal. The lid space can be used for an I/O panel, windows, cable glands, ventilation louvers, etc.

TYPES OF MILEX CASES

There are four types of MILEX housings in 19" technology

SHOCK-MOUNTED

MILEX 19'' transport cases are intended for use in extreme conditions. Electronics are attached to the shock-absorbing housing, not directly to the rack. A minimum of 8 shock and vibration absorbers are used to dampen all mechanical stresses on the housing. Once the housing is mounted, it is tightly closed with a lid to protect the interior from dust, sand, and water.

HARD MOUNTED

MILEX transport cases in the Hard Mounted version lack the housing mounted on absorbers. It is intended for applications where vibration protection is not critical. All other protective features and external dimensions are equivalent to the case mounted on shock absorbers.

SPRING ABSORBERS

The frame is mounted on wire rope shock absorbers. These types of shock absorbers are used where electronics must be protected from vibrations and particularly strong shocks. These absorbers provide the necessary deflection that is not provided by standard absorbers in transport cases. Typical applications include shock protection on ships, submarines, helicopters, and other aircraft.

MILEX PRO

MILEXPRO is the latest generation of rugged cases for transporting sensitive electronics, IT, and measurement systems. It combines high value through reduced integration time and easy access during transport and/or operations. The locking system is unique and supported by a rotating frame system guided in the X and Y axis, automatically centralizing the lid. The long-standing original MILEX features are retained, allowing stacking with other MILEX cases.

Main advantages of MILEXPRO include:

• Long service life
• The lifetime of the integrated product is increased thanks to the improved and innovative mechanical features of MILEXPRO, supported by years of knowledge and experience in the production of aluminum transport enclosures for delicate goods in the most extreme environmental conditions.
• Optimal protection and flexibility

During operation, the user is equipped with maximum protection thanks to the fundamentally improved case design, which provides even better shock and vibration protection. Individual selection of shock mountings allows for universal use of MILEXPRO. The shock mountings can be easily changed later if different equipment is installed in the housing, thanks to profiled mounting support plates. Thanks to the separate sealing and HF shielding system, environmental protection is always ensured, and HF shielding can optionally be added later if needed.

Cost savings Significant reduction in integration time, and thus cost savings, is possible due to the complete removal of the internal rack. The ability to separate the housing body and rack further helps to avoid scratching the housing during the integration phase. With free access to the rack, optimal cable management is ensured. Time savings due to clean and efficient integration management are possible. Flexibility thanks to the variety of MILEX options. We offer customized aluminum transport case options to meet specific requirements and needs.

A wide selection of standard accessories is available:

• Drawers and trays with or without telescopic slides
• Special covers providing additional space for pouches, cable coils, windows, louvers, and connector trays
• Wheels or transport carts
• Special gaskets or floor seals providing weather resistance or EMI protection with covers removed
• Variety of latches and closures

EMI and RFI SHIELDING OPTIONS EMI Gasket Electrically conductive gasket mounted in the housing to provide electrical contact between the covers and the housing. This gasket also protects the housing from atmospheric influences when the covers are mounted. Conductive EMI filler gasket To eliminate the risk of contaminating the interior of the housing with water or dust after removing the covers, a flexible gasket can be specified and mounted between the housing and the rack. This flexible gasket does not affect the vibration characteristics of the housing. Sealing the space between the housing and the frame results in IP 65 protection. The floor gasket conducts electric current. EMC Frame A special EMI frame made of chromated aluminum can be used for additional EMI protection. This provides maximum protection for the electronics inside the housing. To dissipate the heat generated by the electronics, the frame walls have 3 mm diameter holes, with an average distance between holes of 4 mm.

MILEX Design

Properties and characteristics

• Better volume-to-weight ratio compared to plastic, composite, or wooden enclosures
• Compact and durable aluminum design
• Better space utilization due to tight housing radius and minimal space between housing and rack compared to plastic, composite, or wooden enclosures
• Recessed handles and latches
• Stackability even for housings with different external dimensions
• Compliance with MIL-STD-4150 and MIL-STD-28800
• Shock mount calibration matching equipment weight and/or environmental specification
• Carefully selected aluminum alloys

Diverse range of standard sizes (DIN41494 / IEC297)

• Heights from 2 U to 24 U (1 U = 44.45 mm)
• 19" housing and half (1/2) of 19" housing
• Standard enclosure depths - 219, 350, 480, 610, 762 mm
• Standard lid depths - 63, 103, 153 mm
• Custom sizes available and easily adaptable

The performance of MILEX enclosures depends on many variables such as: load weight, load center of gravity, load fragility, load mounting, test duration, test sequence, positive/negative test result criteria, and many other parameters.

Please contact DACPOL to customize the enclosure to qualification requirements.
