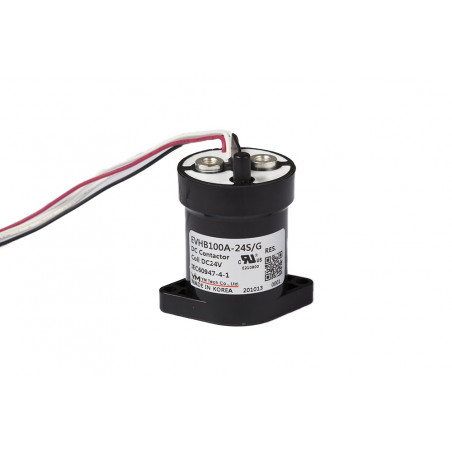

DC EVHB100 relė
DC EVHB100 relė

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: YM Tech

DC EVHB100 relė

  • EVHB100

Application

  • Electric Vehicle,
  • Charging System,
  • Battery Energy Storage System,
  • Fuel Cell Vehicle,
  • etc.

Magnet coil ratings

Nominal voltage(V)Nominal Coil current (mA)Coil resistance (Ω)Pick-up voltage (V)max.Drop-out voltage (V)min.Max. voltage (V)Coil power(W) dissipation
DC 24 260 92.5 75% 10% 130% 6.2 ~ 6.5
12 530 22.8

Contact ratings

Type1Pole Resistor load
Max. Continous current (wire size 35㎟) 100A
Max. switching voltages 1250VDC 40A
Contact Rating switching voltages 12~1250VDC
Max. cut-off current 350VDC 2000A 1 Ops
Voltage drop across contacts per 20A 20mV Max.(At 5Vdc)
Min. permissible load 12V DC 0.5A
Description S.P On/Off (a)
Contact Arrangment, auxiliary contacs 1Form A (SPST-NO.)
General Aux. Contact Current, Max. 2A 30VDC/ 3A 125VAC
General Aux. Contact Current, Min. 100mA 8VDC
Gold alloy Aux. Contacts Max. 0.1A 30VDC / 0.1A 30VAC
Gold alloy Aux. Contacts Min. 1mA 5VDC / 1mA 5VAC

Characteristics

Initial insulation resistance Min. 100MΩ 500V DC
Expected life Mechanical (Min.) 5 X 105
Electric (Min.) (Resistor) 750VDC 100A 6 X 103
800VDC 80A 6 X 103
1000VDC 60A 6 X 103
Initial breakdown voltage Between open contacts 4500VAC 60 Sec. 5mA
Between contacts & coil 3500VAC 60 Sec. 5mA
Operation time (at 20°C) Max. 25ms
Release time (at 20°C) Max. 10ms
Shock resistance Functional Min 196㎨ {20G}
Destructive Min 490 ㎨ {50G}
Vibration resistance Functional 98 ㎨ {10G} 10 to 500 Hz
Destructive 196 ㎨ {20G} 10 to 500 Hz
Conditions for operation transport and storage Ambient temperature -40°C to +85°C
Humidity 5 to 85% R.H.
Unit weight 180g
