Indukcinis šildytuvas Soretherm 20x
Indukcinis šildytuvas Soretherm 20x

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: TM Induction Heating

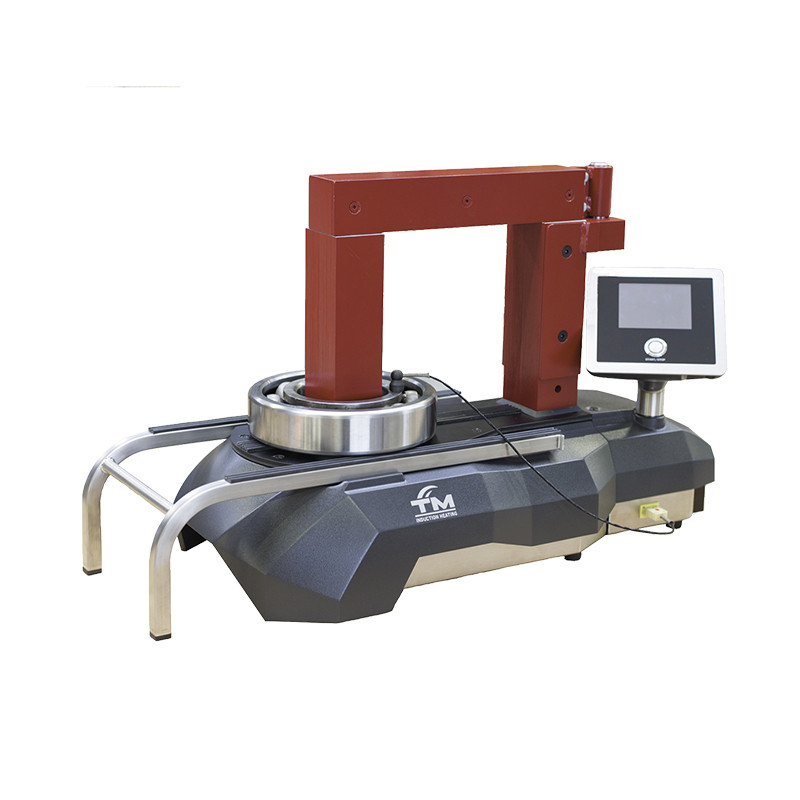

Indukcinis šildytuvas SURETHERM 20X

Induction heater SURETHERM 20X

The SURETHERM 20X is a stationary induction heater with ergonomic pivoting yokes, making it a versatile addition to the SURETHERM-series.

The pivoting yoke makes for easy workpiece handling as there is no need to lift the part and remove the yoke.

To be used for professional mounting of a wide range of parts, including bearings (max. weight: 100 kg, max. diameter: 500 mm).



Specifications


Power Rating 3,7 kVA
Facility Power 110 - 230 V / 16 A / 50/60 Hz
Temperature Control Single / Dual
Weight 21 kg
Operating Area (WxH) 180 x 185 mm
Dimensions (LxBxH) 540 x 275 x 130 mm
Min. bore diameter (workpiece) ø 15 mm
Max. outer diameter (workpiece) ø 500 mm
Max. weight (workpiece) 100 Kg


mažiau
Skaityk daugiau

Atsiųskite užklausą

Ar Jūs domina šis produktas? Ar Jums reikia papildomos informacijos ar individualaus pasiūlymo?

Susisiekite su mumis
KLAUSKITE PRODUKTO close
Dėkojame, kad atsiuntėte žinutę. Atsakysime kuo greičiau.
KLAUSKITE PRODUKTO close
Naršyti
atsiųsti paklausimą

Pridėti į norų sąrašą

tu turi būti prisijungęs

Induction heater SURETHERM 20X

The SURETHERM 20X is a stationary induction heater with ergonomic pivoting yokes, making it a versatile addition to the SURETHERM-series.

The pivoting yoke makes for easy workpiece handling as there is no need to lift the part and remove the yoke.

To be used for professional mounting of a wide range of parts, including bearings (max. weight: 100 kg, max. diameter: 500 mm).



Specifications


Power Rating 3,7 kVA
Facility Power 110 - 230 V / 16 A / 50/60 Hz
Temperature Control Single / Dual
Weight 21 kg
Operating Area (WxH) 180 x 185 mm
Dimensions (LxBxH) 540 x 275 x 130 mm
Min. bore diameter (workpiece) ø 15 mm
Max. outer diameter (workpiece) ø 500 mm
Max. weight (workpiece) 100 Kg
