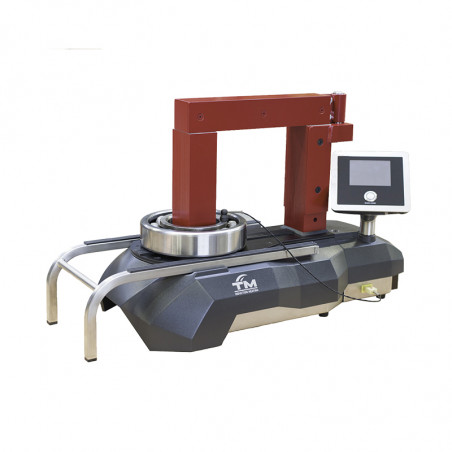

The SURETHERM 20X is a stationary induction heater with ergonomic pivoting yokes, making it a versatile addition to the SURETHERM-series. The pivoting yoke makes for easy workpiece handling as there is no need to lift the part and remove the yoke. To be used for professional mounting of a wide range of parts, including bearings (max. weight: 100 kg, max. diameter: 500 mm). |
|
| Power Rating | 3,7 kVA |
| Facility Power | 110 - 230 V / 16 A / 50/60 Hz |
| Temperature Control | Single / Dual |
| Weight | 21 kg |
| Operating Area (WxH) | 180 x 185 mm |
| Dimensions (LxBxH) | 540 x 275 x 130 mm |
| Min. bore diameter (workpiece) | ø 15 mm |
| Max. outer diameter (workpiece) | ø 500 mm |
| Max. weight (workpiece) | 100 Kg |
Are you interested in this product? Do you need additional information or individual pricing?
|
The SURETHERM 20X is a stationary induction heater with ergonomic pivoting yokes, making it a versatile addition to the SURETHERM-series. The pivoting yoke makes for easy workpiece handling as there is no need to lift the part and remove the yoke. To be used for professional mounting of a wide range of parts, including bearings (max. weight: 100 kg, max. diameter: 500 mm). |
|
| Power Rating | 3,7 kVA |
| Facility Power | 110 - 230 V / 16 A / 50/60 Hz |
| Temperature Control | Single / Dual |
| Weight | 21 kg |
| Operating Area (WxH) | 180 x 185 mm |
| Dimensions (LxBxH) | 540 x 275 x 130 mm |
| Min. bore diameter (workpiece) | ø 15 mm |
| Max. outer diameter (workpiece) | ø 500 mm |
| Max. weight (workpiece) | 100 Kg |
