Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: DetasUltra

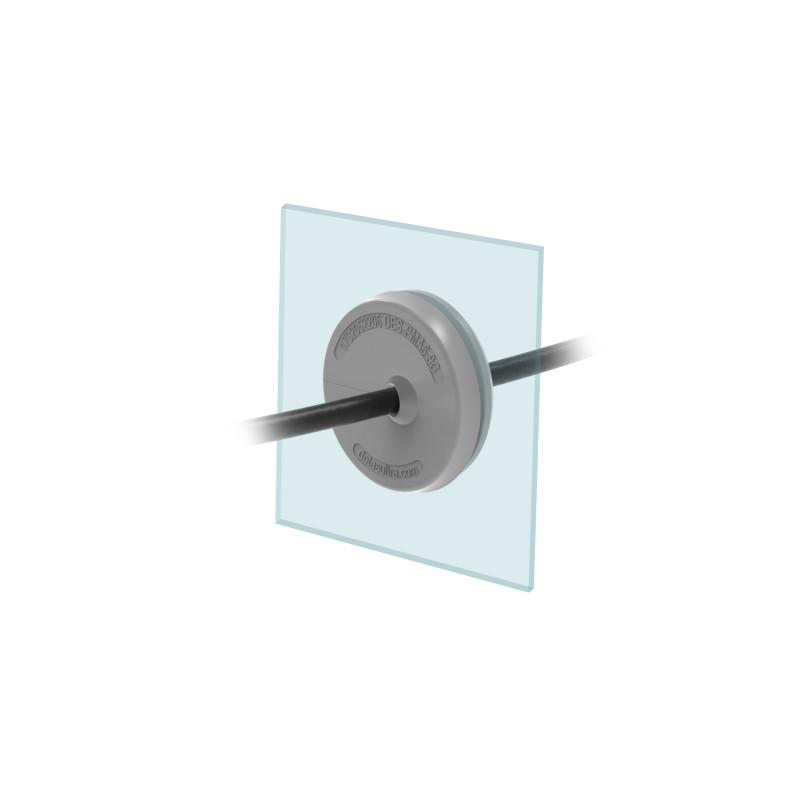

DES PMA32 3-6G - Kabelių įvedimo plokštės

  • 1732052203
  • Matmenys 40
  • Skylė 32,5
  • Produkto tipas Przepusty kablowe
  • 3 - 6

Multi-range grommets of DES PMA family are used to pass headed cables through walls with metric openings.

  • For cables with or without connectors
  • High strain relief thanks to the double membrane
  • Saving space and installation time
  • IP54 protection
  • Material: TPE, halogen- and silicone-free
  • Flammability:self-extinguishing according to UL94-V0
  • Temperature: -40°C.....+105°C (static)
  • Wall thickness: 1.5 to 2.5 mm
Model Code Opening Ø [mm] Cable Ø max. [mm] Dimensions [mm]
DES PMA32 3-6G 1732052203 32,5 3 - 6 40
DES PMA32 6-9G 1732052206 32,5 6 - 9 40

Atsiųskite užklausą

Ar Jūs domina šis produktas? Ar Jums reikia papildomos informacijos ar individualaus pasiūlymo?

Susisiekite su mumis
KLAUSKITE PRODUKTO close
Dėkojame, kad atsiuntėte žinutę. Atsakysime kuo greičiau.
KLAUSKITE PRODUKTO close
Naršyti

Pridėti į norų sąrašą

tu turi būti prisijungęs

  • Matmenys 40
  • Skylė 32,5
  • Produkto tipas Przepusty kablowe
  • 3 - 6

Multi-range grommets of DES PMA family are used to pass headed cables through walls with metric openings.

  • For cables with or without connectors
  • High strain relief thanks to the double membrane
  • Saving space and installation time
  • IP54 protection
  • Material: TPE, halogen- and silicone-free
  • Flammability:self-extinguishing according to UL94-V0
  • Temperature: -40°C.....+105°C (static)
  • Wall thickness: 1.5 to 2.5 mm
Model Code Opening Ø [mm] Cable Ø max. [mm] Dimensions [mm]
DES PMA32 3-6G 1732052203 32,5 3 - 6 40
DES PMA32 6-9G 1732052206 32,5 6 - 9 40
