Hersteller: DetasUltra

DES PMA32 3-6G - Kabeleinführungsplatten

  • 1732052203
  • Maße 40
  • Öffnung 32,5
  • Produkttyp Przepusty kablowe
  • 3 - 6

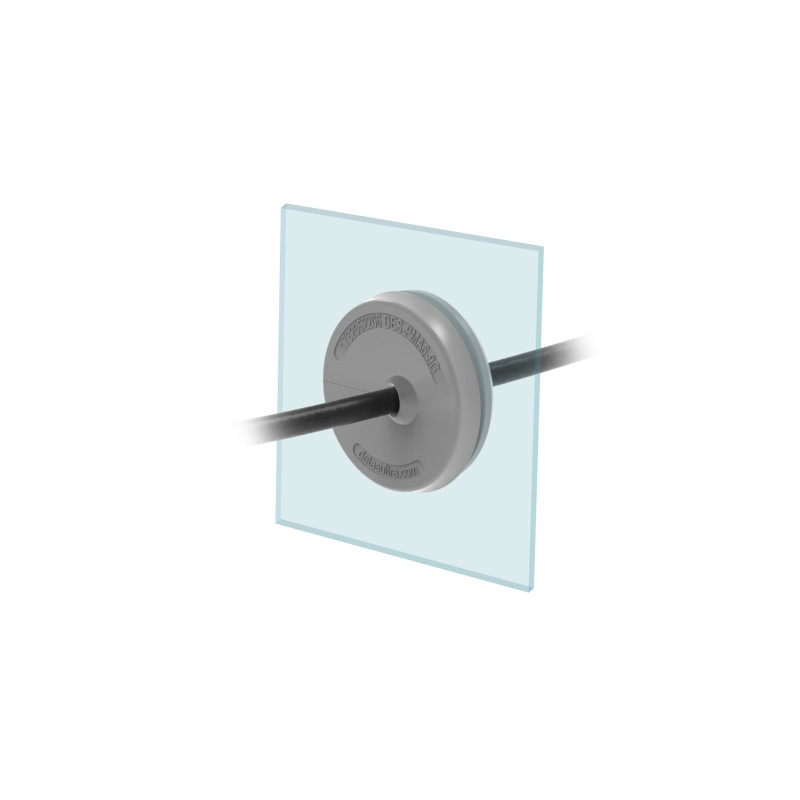

Multi-range grommets of DES PMA family are used to pass headed cables through walls with metric openings.

  • For cables with or without connectors
  • High strain relief thanks to the double membrane
  • Saving space and installation time
  • IP54 protection
  • Material: TPE, halogen- and silicone-free
  • Flammability:self-extinguishing according to UL94-V0
  • Temperature: -40°C.....+105°C (static)
  • Wall thickness: 1.5 to 2.5 mm
Model Code Opening Ø [mm] Cable Ø max. [mm] Dimensions [mm]
DES PMA32 3-6G 1732052203 32,5 3 - 6 40
DES PMA32 6-9G 1732052206 32,5 6 - 9 40
