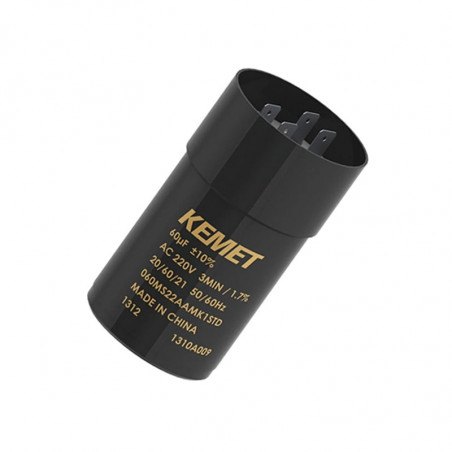

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

Gamintojas: BHC

Kondensatoriai varikliams

Start up capacitors for motors - MS/MD series

Technical data:

Capacity range: 20µF - 200µF
Tolerance: ±10% marking MK
  0 +25% marking MA
Operating voltage range: MS 120, 220, and 260 VAC
  MD 120/150, 220/280 and 260/330 VAC
Over voltage: 1,25 x nominal voltage
Temperature range: -20°C - 60°C
Electrical terminals: 2 x wire 18cm length.

Operation voltage rangeCapacity
[µF]
Dimensions
dxL
Type
Tolerance
0 + 25%
Tolerance
± 10%
330VRMS/450VRMS 20 38 x 75 020MD26AAMA2DAC 020MD26AAMK2DAC
330VRMS/450VRMS 25 38 x 75 025MD26AAMA2DAC 025MD26AAMK2DAC
330VRMS/450VRMS 30 38 x 75 030MD26AAMA2DAC 030MD26AAMK2DAC
330VRMS/450VRMS 35 38 x 75 035MD26AAMA2DAC 035MD26AAMK2DAC
330VRMS/450VRMS 40 38 x 90 040MD26ABMA2DAC 040MD26ABMK2DAC
330VRMS/450VRMS 50 38 x 90 050MD26ABMA2DAC 050MD26ABMK2DAC
330VRMS/450VRMS 60 38 x 75 060MD26AAMA2DAC 060MD26AAMK2DAC
330VRMS/450VRMS 60 38 x 90 060MD26ABMA2DAC 060MD26ABMK2DAC
330VRMS/450VRMS 70 38 x 90 070MD26ABMA2DAC 070MD26ABMK2DAC
330VRMS/450VRMS 70 38 x 116 070MD26ACMA2DAC 070MD26ACMK2DAC
330VRMS/450VRMS 80 38 x 90 080MD26ABMA2DAC 080MD26ABMK2DAC
330VRMS/450VRMS 90 38 x 90 090MD26ABMA2DAC 090MD26ABMK2DAC
330VRMS/450VRMS 90 38 x 116 090MD26ACMA2DAC 090MD26ACMK2DAC
330VRMS/450VRMS 100 38 x 90 100MD26ABMA2DAC 100MD26ABMK2DAC
330VRMS/450VRMS 125 38 x 116 125MD26ACMA2DAC 125MD26ACMK2DAC
