Capacitors for motors
  • Capacitors for motors

Photos are for informational purposes only. View product specification

Manufacturer: BHC

Capacitors for motors


CAPACITORS FOR MOTORS

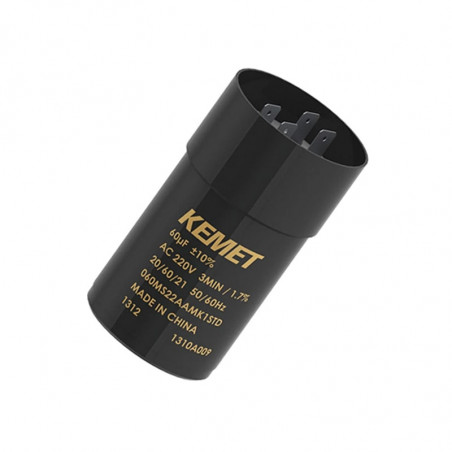

START UP CAPACITORS FOR MOTORS –MS/MD SERIES

Technical data
Capacity range
20µF do 200µF
Tolerance
±10% marking MK

0 +25% marking MA
Operating voltage range
MS 120,220, i 260 VAC

MD 120/150, 220/280 i 260/330 VAC
Over voltage
1,25 x Nominal voltage
Temperature range
-20°C do 60°C
Electrical terminals:
2 x wire 18cm length.

Operation voltage rangeCapacity
[µF]		Dimensions
dxL		Type
Tolerance
0 + 25%		Tolerance
± 10%
330VRMS/450VRMS 20 38 x 75 020MD26AAMA2DAC 020MD26AAMK2DAC
330VRMS/450VRMS 25 38 x 75 025MD26AAMA2DAC 025MD26AAMK2DAC
330VRMS/450VRMS 30 38 x 75 030MD26AAMA2DAC 030MD26AAMK2DAC
330VRMS/450VRMS 35 38 x 75 035MD26AAMA2DAC 035MD26AAMK2DAC
330VRMS/450VRMS 40 38 x 90 040MD26ABMA2DAC 040MD26ABMK2DAC
330VRMS/450VRMS 50 38 x 90 050MD26ABMA2DAC 050MD26ABMK2DAC
330VRMS/450VRMS 60 38 x 75 060MD26AAMA2DAC 060MD26AAMK2DAC
330VRMS/450VRMS 60 38 x 90 060MD26ABMA2DAC 060MD26ABMK2DAC
330VRMS/450VRMS 70 38 x 90 070MD26ABMA2DAC 070MD26ABMK2DAC
330VRMS/450VRMS 70 38 x 116 070MD26ACMA2DAC 070MD26ACMK2DAC
330VRMS/450VRMS 80 38 x 90 080MD26ABMA2DAC 080MD26ABMK2DAC
330VRMS/450VRMS 90 38 x 90 090MD26ABMA2DAC 090MD26ABMK2DAC
330VRMS/450VRMS 90 38 x 116 090MD26ACMA2DAC 090MD26ACMK2DAC
330VRMS/450VRMS 100 38 x 90 100MD26ABMA2DAC 100MD26ABMK2DAC
330VRMS/450VRMS 125 38 x 116 125MD26ACMA2DAC 125MD26ACMK2DAC
330VRMS/450VRMS 150 46 x 90 150MD26BBMA2DAC 150MD26BBMK2DAC
330VRMS/450VRMS 150 46 x 116 150MD26BCMA2DAC 150MD26BCMK2DAC
330VRMS/450VRMS 200 46 x 116 200MD26BCMA2DAC 200MD26BCMK2DAC

OPERATION CAPACITORS FOR MOTORS
Technical data
Tolerance
±5%
Operation frequency
50 4- 60 Hz
Operation voltage
450 VAC
Temperature range
-25°C do 85°C
Climatic category
25/85/21
Operation category
B - 400V 10000 hour

C - 450V 3000 hour


TypeCapacity
[µF]		Dimensions
Ø
[mm]		H
[mm]
MKA 450-1 1 25 57
MKA 450-1,25 1,25 25 57
MKA 450-1,5 1,5 25 57
MKA 450-2 2 25 57
MKA 450-2,5 2,5 25 57
MKA 450-3 3 25 57
MKA 450-3,15 3,15 25 57
MKA 450-3,5 3,5 25 57
MKA 450-4 4 25 57
MKA 450-4,5 4,5 25 57
MKA 450-5 5 30 57
MKA 450-5,5 5,5 30 57
MKA 450-6 6 30 57
MKA 450-6,3 6,3 30 57
Type

Capacity
[µF]

Dimensions
Ø
[mm]		H
[mm]
MKA 450-7 7 30 57
MKA 450-8 8 30 70
MKA 450-9 9 30 70
MKA 450-10 10 35 70
MKA 450-11 11 35 70
MKA 450-12 12 35 70
MKA 450-12,5 12,5 35 70
MKA 450-13 13 35 70
MKA 450-14 14 35 70
MKA 450-15 15 40 70
MKA 450-16 16 40 70
MKA 450-18 18 40 70
MKA 450-20 20 40 70
MKA 450-22 22 40 94
TypeCapacity
[µF]		Dimensions
Ø
[mm]		H
[mm]
MKA 450-25 25 40 94
MKA 450-30 30 40 94
MKA 450-31,5 31,5 45 94
MKA 450-35 35 45 94
MKA 450-40 40 45 94
MKA 450-45 45 50 94
MKA 450-50 50 50 94
MKA 450-55 55 50 94
MKA 450-60 60 50 120
MKA 450-70 70 50 120
MKA 450-75 75 50 120
MKA 450-80 80 50 120
MKA 450-90 90 60 120
MKA 450-100 100 60 120
