Įleidžiami sustojimai su 2 + 3 tipo kabeliais (C + D) MLPX1-230L-W

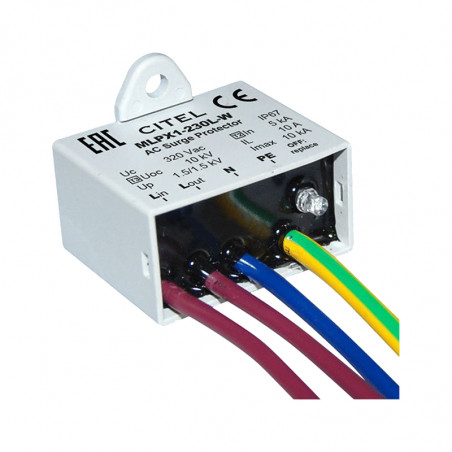

Hard-wired single-phase Type 2 + 3 AC surge protector MLPX1-230L-W

• Ultra compact Type 2 + 3 surge protector for 230 Vac networks
• Wall mounting and hard wired connection
• Breakable mounting bracket
• Protection rating : IP65 (MLPX1-230L-W) and IP20 (MLPX1-230L-W/IP20)
• Disconnection signaling by indicator
• AC disconnection in case of end of life
• EN 61643-11, IEC 61643-11 and UL1449 4ed. compliance



Ograniczniki przepięć z okablowaniem typu 2+3 (C+D) MLPX1-230L-W

Characteristics

Description

MLPX1-230L-W

Network 230-277 V single phase
Max. Load current IL 5A
Max. AC operating voltage UC 320V AC
Nominal discharge current - 15 x 8/20 µs impulses In 5kA
Max. discharge current -max. withstand @ 8/20 µs by pole Imax 10kA
Withstand on Combination waveform - Class III test Uoc 10kV / 5kA
Withstand on overvoltages IEEE C62.41.1   10kV / 10kA
Protection level CM/DM @In (8/20µs) and @ 6kV (1.2/50µs) Up 1,5kV
Admissible short-circuit current ISCCR 10000A
Mechnical characteristics
Thermal disconnector internal
Dimensions see diagram
Connection to Network by wires :1.5 mm² (L/N) and 2.5 mm² (PE)
Disconnection indicator Disconnection and AC line cut-off
Failsafe behavior Led green OFF and AC network cut-off
Remote signaling of disconnection none
Mounting wall or plate
Operating temperature - 40 do +85°C
Housing material PA66 UL94-V0
Protecion rating IP65

Dimensions and diagrams

Ograniczniki przepięć z okablowaniem typu 2+3 (C+D) MLPX1-230L-W wymiary
Ograniczniki przepięć z okablowaniem typu 2+3 (C+D) MLPX1-230L-W schemat

GDT: Gas Discharge Tube
V: Varistor
Ft: Thermal fuse
t°: Thermal system dsconnection
