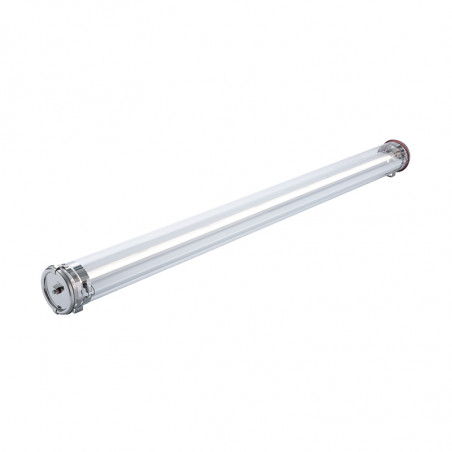

Fresnel 133 Luminine.

Key features
Plug[&]Play-installation by disconnectable Plug
Suitable for industrial environments
Very high resistance to vibrations
Very high resistance to corrosion
Durable and maintainable luminaire

Technical data

Light source

• High efficiency LED modules (150 lm/W)
• LED modules for high temperature
• 50 000 h L80/B50 at max. operating temperature
• Replaceable LED modules
• CRI > 80

Optic

• Light mixing chamber
• Intensive linear lens

Control Gear

• Resistant electronic driver, "Industry" rated (non-dimmable)
• Resistance to voltage surge: 320 V AC, 48 h
• Supports voltage peaks < 4 kV

Power supply

• 220-240V 50/60 Hz

Operating temperature

• -20^oC do +50^oC

Connection

• Disconnectable Plug Ø cable 8–10 mm (3x1,5 mm²)

Fixing

• 2 reinforced Stainless Steel fixing straps

Method of Construction

• Housing in one piece with high mechanical and chemical resistance
• Long-lasting imperviousness by axial screw fitting

Materials
Housing

• Polycarbonate protected by a coextruded layer of PMMA

End caps, fixing straps

• Stainless Steel 304L

Gaskets

• EPDM

Standards
Imperviousness

• – IP 66, IP 68, IP 69K

Shock resistance

• IK 10

Fire resistance

• 650^oC

Vibration resistance

• Meets the severe application requirements of the standard EN 60598-1 (tested according to CEI 60068-2-6)
