Fabricant: Sammode

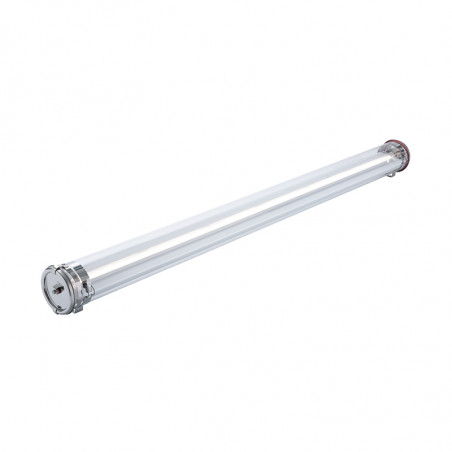

Fresnel 133 luminaire

FRESNEL 133

Technology LED
Max. temp. 50 0C
Light output 9500 lm
Control gear "Industry" rated



Key features
Plug[&]Play-installation by disconnectable Plug
Suitable for industrial environments
Very high resistance to vibrations
Very high resistance to corrosion
Durable and maintainable luminaire

Technical data

Light source

  • High efficiency LED modules (150 lm/W)
  • LED modules for high temperature
  • 50 000 h L80/B50 at max. operating temperature
  • Replaceable LED modules
  • CRI > 80

Optic

  • Light mixing chamber
  • Intensive linear lens

Control Gear

  • Resistant electronic driver, "Industry" rated (non-dimmable)
  • Resistance to voltage surge: 320 V AC, 48 h
  • Supports voltage peaks < 4 kV

Power supply

  • 220-240V 50/60 Hz

Operating temperature

  • -20oC do +50oC

Connection

  • Disconnectable Plug Ø cable 8–10 mm (3x1,5 mm2)

Fixing

  • 2 reinforced Stainless Steel fixing straps

Method of Construction

  • Housing in one piece with high mechanical and chemical resistance
  • Long-lasting imperviousness by axial screw fitting

Materials
Housing

  • Polycarbonate protected by a coextruded layer of PMMA

End caps, fixing straps

  • Stainless Steel 304L

Gaskets

  • EPDM

Standards
Imperviousness

  • – IP 66, IP 68, IP 69K

Shock resistance

  • IK 10

Fire resistance

  • 650oC

Vibration resistance

  • Meets the severe application requirements of the standard EN 60598-1 (tested according to CEI 60068-2-6)




Principal part numbers

Lumens Designation Part No. Cons (W) Optic   T (K) L (mm)
9500 FRE133 16H830 POME PS3 BRS 32110010 81   3000 1850
  FRE133 16H840 POME PS3 BRS 32110020   4000
