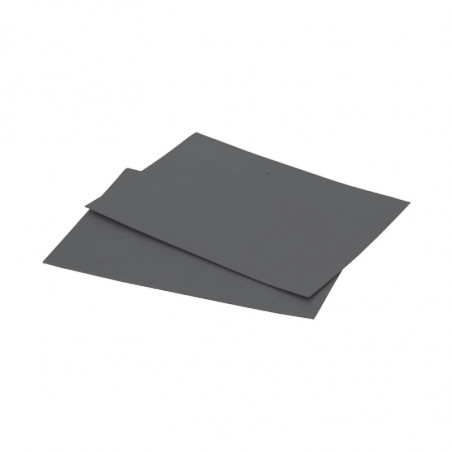

Q-Zorb 3000 AG (didelis pralaidumas virš 2GHz)
  • Q-Zorb 3000 AG (didelis pralaidumas virš 2GHz)

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: LAIRD TECHNOLOGIES

Q-Zorb 3000 AG (didelis pralaidumas virš 2GHz)

Q-ZORB 3000 HP (high permeability<2GHZ)


Q-Zorb 3000 is used in situations where low frequency (< 2 GHz) noise problems are occurring. Some applications include

  • Die cut components placed in microwave cavities
  • Place on top of noisy chip to reduce emissions
  • Wrapped around cables to reduce conducted emissions
  • Used inside of board level shields to improve shielding performance


Typical attenuation values

Table of physical properties

Size 3535 .006” x 12” x 13”
3535-S .006” x 4” x 6”
3536 .020” x 12” x 13”
3536-S .020” x 4”x 6”
Permeability u’ (1MHz) 37
Electrical resistivity (Ohm) 6 x 1010
Specific gravity 3.1
Tensile strength (MPa) 1.9
Hardness (Durometer A) 70 ± 10%
Thermal conductivity (W / mk) 1.0
Flammability UL94 V-0
