Gamintojas: TELE Haase

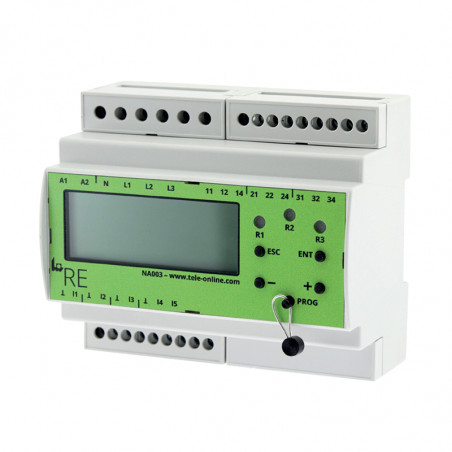

RE NA003 - atsinaujinančių energijos šaltinių apsaugos sistema

The new grid and system protection is at home all over the world and guarantees a secure link between decentralized energy producer and public grid. The new RE NA003 with its compact design covers all main country standards in one device. All relevant parameters can be flexibly set directly in the field via Open Setup. This allows for permanently programmed, country specific standards to be individually adapter if required. For the first time, operation in single and three-phase grids is possible through simple switching. The new grid and system protection from Tele is suitable for medium and low voltages


The characteristics of NA003 as a good grid and system protector:

  • Functional safety
  • Voltage drop protection; overvoltage protection; monitoring of voltage quality
  • Frequency drop protection; frequency rise protection
  • Detection of off-grid operation
  • Wide rated voltage and rated frequency range, adjustable rated voltage





Iconography that presents where NA003 have to be installed:

  1. Renewable Energy source (sun, wind)
  2. Conversion renewable Energy into electricity (wind turbine, PV panels)
  3. Power electronic converter
  4. Energy storage
  5. Protecting system (DA003 and switches)
  6. Public grid


Rated data:

Supply circuit
Terminals A1 (L), A2 (N)
Supply voltage DC: 24V
AC: 110-230V
Supply voltage tolerance DC: ±10%
AC: ±30%
Rated frequency 50/60Hz
Tolerance of rated frequency 48 – 63Hz
Rated surge voltage 4kV
Measuring circuit
Terminals L1, L2, L3, N
Measuring input 3x400V AC
Measurand line to line voltage, line to neutral voltage, 10 minutes average voltage, frequency, rate of change of frequency (RoCoF), phase shift (PShift)
Measuring ranges
Line to line voltage 0-560V AC
Line to neutral voltage 0-325V AC
Frequency 40-60Hz
RoCoF 100mHz/s-2Hz/s
PShift 1-15°
Digital inputs
Terminals I1 i  ⊥, I2 i  ⊥, I3 i  ⊥, I4/I5 i  ⊥
Type of contact potential free
Min. switching voltage/current 24V/5mA
Output circuit
Terminals 11-12-14; 21-22-24; 31-32-34;
Number of contacts 3 changeover
Contact material AgNi
Rated current 5A/250V AC
Electrical endurance 100x103switching cycles (AC-1)
Mechanical endurance 15x106switching cycles
Accuracy
Base accuracy (voltage) <0,5% @ 25°C
Temperature influence <0,01%/°C
Resolution 10mV
Base accuracy (frequency) <0,01 Hz dla 25°C
Temperature influence <0,00002Hz/°C
Resolution 1mHz
Isolation data
Rated insulation voltage 400V
Supply circuit/measuring circuit protective separation
