SILICOUL 3,7kV -60°C iki +180°C (H klasė)
  • SILICOUL 3,7kV -60°C iki +180°C (H klasė)

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

Gamintojas: OMERIN

SILICOUL 3,7kV -60°C iki +180°C (H klasė)

Characteristics
• Continuous operating temperatures: -60 °C to +180 °C.
• Good resistance to thermal shock and UV.
• Excellent mechanical strength.
• Rated voltage: 3.7 kV.
• Test voltage: 10 kV.

Standard products
• Standard insulation colour: white.
• Standard reinforcing braid colour: brown.

Applications
• Cabling for rotating machines: motors, alternators, generators.
• Cabling for static machines: transformers, inductors, inverters, choppers.
• Shipbuilding and railway construction.
• Power cabinets

Approvals - standards
• Lloyd’s Register approval certificates:
compliance with the tests described as per standards
IEC 60228, IEC 60092-350/360,
IEC 60754-2, IEC 60332-1-1/2,
IEC 60332-3-22 category A and IEC 60331-11/21.

Options
• Extra-flexible tin-plated copper core class 6 as per IEC 60228: contact us.
• Flexible or extra-flexible bare copper, silver-plated or nickel-plated copper core – class 5 or 6 as per IEC 60228: contact us.
• Without reinforcing braid (ref. SILICOUL® ST 3.7 KV): contact us.
• Varnished synthetic fibre reinforcing braid (ref. SILICOUL® RI 3.7 KV): contact us.
• Very high temperature fibre reinforcing braid: contact us.
• Outer flexible armour: > Galvanised steel braid (ref. SILICOUL® BG 3.7 KV): contact us. > Stainless steel braid (ref. SILICOUL® BI 3.7 KV): contact us.
• Multi-conductor cable made up of an assembly of several single conductor cables SILICOUL® 3.7 KV: contact us.
• Other colours: contact us
• Other nominal cross-sections: contact us.
• Other options and/or combinations of the options outlined above: contact us.

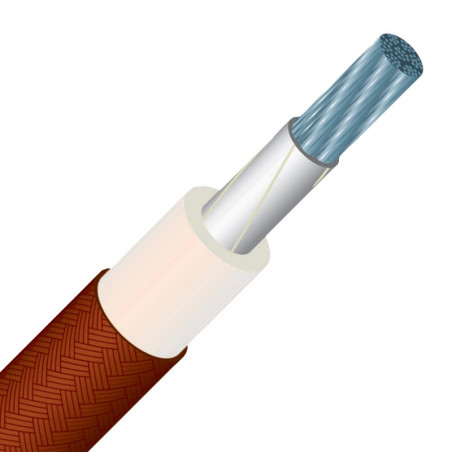

1 • Flexible tin-plated copper core - class 5 as per IEC 60228.
2 • Optional separating tape.
3 • Insulation: Silicone rubber.
4 • Reinforcement: Coated synthetic fibre braid.


Nominal cross-section
[mm2]
Nominal strandingMaximum linear resistance at 20 °C (Ω/km)Nominal diameter
[mm]
Approximate linear weight
[kg/km]
1.5 30 x 0.25 13.7 5.5 38.3
2.5 50 x 0.25 8.21 6.3 51.7
4 56 x 0.30 5.09 6.9 68.7
6 84 x 0.30 3.39 7.8 94.3
10 80 x 0.40 1.95 9.0 143
16 126 x 0.40 1.24 10.2 201
25 196 x 0.40 0.795 1 1.8 296
35 276 x 0.40 0.565 13.2 392
50 396 x 0.40 0.393 15.3 545
70 360 x 0.50 0.277 17.0 720
95 485 x 0.50 0.210 20.2 973
120 608 x 0.50 0.164 22.2 1233
150 756 x 0.50 0.132 24.4 1519
185 944 x 0.50 0.108 25.8 1856
240 1221 x 0.50 0.0817 29.6 2470
300 1525 x 0.50 0.0654 31.8 3004
400 2037 x 0.50 0.0495 35.7 3909
