Putų tarpiklis po jungtimi

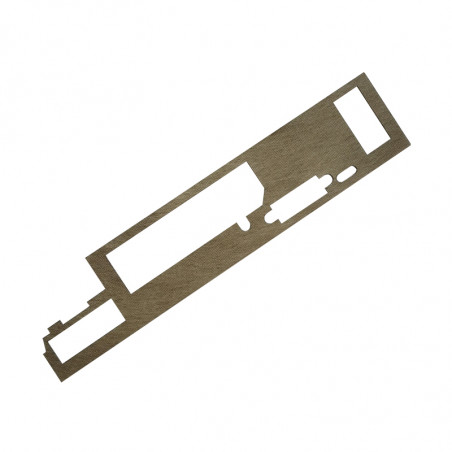

Connector gaskets are made of a low compression force foam core, bonded over with conductive fabric and shaped like customer’s drawings. Ni/Cu standard or Ni/Cu with Carbon protection coating fabric bonded to resilient core (normally available in urethane foam) offers a very good shielding efficiency and works as a seal to block air, light and dust. Connector gaskets are also available with PSA, if required



Product features:

  • conductive fabric wrapped over foam or sponge core and die-cut as drawing
  • suitable for use on metal enclosures or metallized plastics (low compression force)
  • over 100db average shielding efficiency in the range 100mhz-10ghz
  • rip-stop fabrics that allow  self-terminating cut ends on gaskets
  • available with nickel copper fabric to assure the best shielding preformance
  • pressure sensitive adhesive tape (optional)

Range of cores:

  • urethane foam (PU)
  • neoprene sponge (NS)

And fabric materials:

  • nickel copper + carbon  (SI)
  • nickel copper  (NC)

Complete the P/N with:
2-letters CORE SUFFIX;
2-letters FABRIC SUFFIX; “AD” for PSA


Order example

D-Connector,9 pins, Nickel Copper + Carbon fabric over Urethane foam, with adhesive

Shielding performances of fabric over foam gaskets according to MIL-G-83528

Uszczelka piankowa pod złącza

P/N Pins A B C D E

CG.S09

 9 33.5 25.0 16.5 4.0 7.9

CG.S11

 11 41.7 33.3 24.7 3.9 7.9

CG.S15

 15 41.7 33.3 24.7 3.9 7.9

CG.S25

 25 56.0 47.4 38.1 3.9 7.9

CG.S37

 37 72.6 64.4 55.9 3.9 7.9

CG.S50

 50 69.9 61.1 52.4 5.4 10.7


Other size, configurations or ready-to-mount finished gaskets available upon request, here are some examples:
