Gamintojas: SALTEK

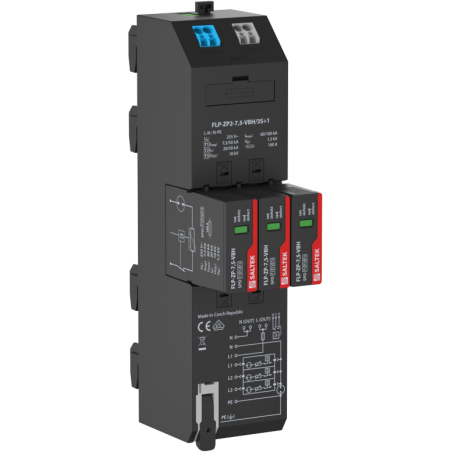

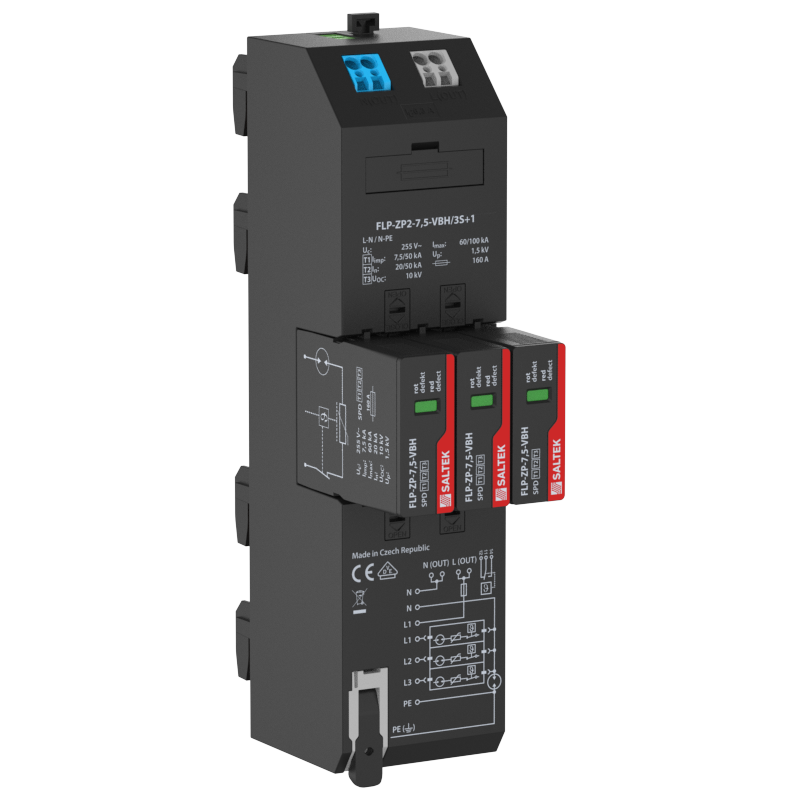

FLP-ZP2-7,5-VBH/3S+1 - Viršįtampių ribotuvas (SPD)

  • FLP-ZP2-7,5-VBH/3S+1
  • Nominali įtampa 230 V AC
  • Apsaugos laipsnis IP 20
  • SPD tipas T1,T2,T3
  • Tinklo tipas TN-S
  • Nuotolinė indikacija potential-free change-over contact
Parameter name Parameter value
Type of SPD T1,T2,T3
Mounting 40 mm busbar system
Nominal voltage Un 230 V AC
Maximum operating voltage L-N Uc 255.00 V AC
Maximum operating voltage N-PE Uc 255.00 V AC
Nominal load current - auxiliary output terminals L, N 6.3 A
Type of network TN-S|TT
Maximum overcurrent protection 160 A gL/gG
Short-circuit current rating ISCCR 25.0 kA
Total discharge current (10/350 µs) ITotal(10/350) 30.00 kA
Lightning impulse current (10/350 µs) L-N Iimp 7.50 kA
Lightning impulse current (10/350 µs) N-PE Iimp 50.00 kA
Nominal discharge current (8/20 µs) L-N In 20.00 kA
Nominal discharge current (8/20 µs) N-PE In 50.00 kA
Test voltage Uoc 10.0 kV
Total discharge current (8/20 µs) ITotal(8/20) 100.00 kA
Maximum discharge current (8/20 µs) L-N Imax 60.00 kA
Maximum discharge current (8/20 µs) N-PE Imax 100.00 kA
Voltage protection level mode L-N Up 1.50 kV
Voltage protection level mode L-PE Up 1.50 kV
Voltage protection level mode N-PE Up 1.50 kV
Response time L-N ta 100 ns
Response time N-PE ta 100 ns
TOV 5 s L-N 335 V
TOV 5 s L-PE 440 V
TOV characteristic (TOV 5 s) withstand
TOV 120 min L-N 440 V
TOV 120 min L-PE 335 V
TOV characteristic (120 min) withstand
TOV 200 ms N-PE 1 200 V
TOV characteristic (TOV 200 ms) withstand
Cross-section of connected conductors solid (min) 1.00 mm2
Cross-section of connected conductors solid (max) 16.00 mm2
Cross-section of connected conductors stranded (min) 1.00 mm2
Cross-section of connected conductors stranded (max) 16.00 mm2
Cross-section of connected conductors solid (max) - aux. out terminals L, N 4.00 mm2
Cross-section of connected conductors stranded (max) - aux. out terminals L, N 2.50 mm2
Cross-section of remote indication conductors solid (max) 1.5 mm2
Cross-section of remote indication conductors stranded (max) 1.5 mm2
Fault indication red indication field
Remote indication potential-free change-over contact
Remote indication contacts 250V/0,5A AC,250V/0,1A DC
Degree of protection IP 20
Range of ambient temperatures (min/max) -40 / 80 °C
Humidity 5 - 95 %
According to standard EN 61643-11:2012, IEC 61643-11:2011
ETIM Class EC000381
Plug module FLP-ZP-7,5-VBH/0
Customs tariff number 85363090
EAN 8595090570295
