Gamintojas: Lippmann

Ne laidžios gyvatės - Protector ™ silikoninė-hose

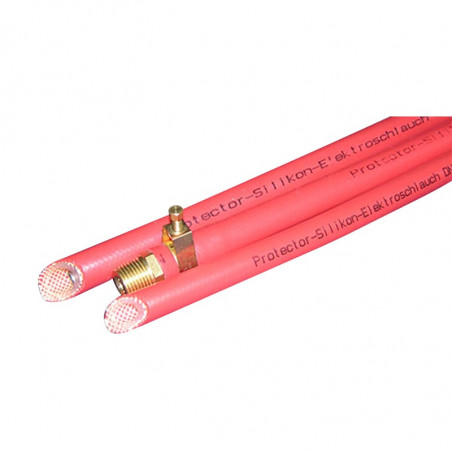

PROTECTOR™ SILICONE-ELECTRIC-HOSE



Properties
  • high temperature resistance of +300 °C (silicone) and +500 °C (aramide)
  • working pressure: 12 bar – burst pressure: 40 bar
  • surface resistance according to VDE 0303 10¹² Ohm
  • arc resistance according to VDE 0441 80-100 sec
  • The temperature of the media inside as well as the ambient temperature (radiation heat) can be higher than at other products.
  • Very good flexibility and form stability – even with the smallest bending radius there is no kinking or flattening.
  • Free flow of cooling water is always guaranteed.
  • Increased ozone resistance of the hose, therefore the aging process of the hose is much slower
  • longer working life
  • REACH-conform
Material
  • Lining: Silicone, smooth, color: transparent
  • Reinforcement: temperature resistant aramide yarns
  • Cover: Silicone, smooth, color: red, Temperature-, UV- and weather resistant as well as resistant of abrasion
Areas of Application
  • Inverters
  • Rectifiers
  • Induction Melting Furnaces
  • Inductive Billet or Bar Heater
  • Induction Hardening Systems
Available Sizes:
DN 10 x 4,0 mm DN 13 x 4.0 mm DN 19 x 5.8 mm
