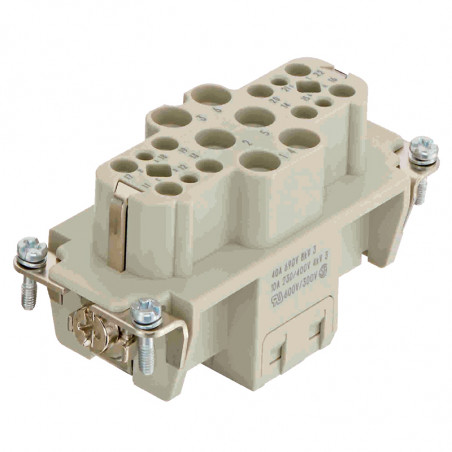

Han-Com kasetės

Inserts Han-Com®

Number of contacts4/0 + 4/2 + 4/4 + 4/8 +
Power supply Screw terminal Screw terminal Axial screw terminal Screw terminal

Electrical data acc. to EN 61 984
UL/CSA
Power contacts

80 A 830 V 8 kV 3

80 A 830 V 8 kV 3

63 A 690 V 6 kV 3

80 A 400 V 6 kV 3
Signal contacts - 16 A 400 V 6 kV 3 16 A 230 V 4 kV 3 16 A 400 V 6 kV 3
Wire gauge
Power contacts
1,5 ... 16 mm2
1,5 ... 16 mm2
6 ... 16 mm2
1,5 ... 16 mm2
Signal contacts   0,5 ... 2,5 mm2 0,14 ... 2,5 mm2 0,5 ... 2,5 mm2
Male insert (M) 09 38 006 2611 09 38 006 2601 09 38 008 2601 09 38 012 2601
Female insert (F) 09 38 006 2711 09 38 006 2701 09 38 008 2701 09 38 012 2701

Number of contacts6/6 + 6/12 +8/0 +
Power supply Axial screw terminal Axial screw terminal Axial screw terminal

Electrical data acc. to EN 61 984
UL/CSA
Power contacts		 100 A 690 V 8 kV 3 40 A 690 V 8 kV 3 100 A 690 V 8 kV 3
Signal contacts 16 A 400 V 6 kV 3 10 A 230/400 V 4 kV 3 -
Wire gauge
Power contacts
16 ... 35 mm2
2,5 ... 8 mm2
10 ... 25 mm2
Signal contacts 0,2 ... 2,5 mm2 0,2 ... 2,5 mm2
Male insert (M) 09 38 012 2651 09 38 018 2601 09 38 008 2653
Female insert (F) 09 38 012 2751 09 38 018 2701 09 38 008 2753

Number of contacts8/24 + 12/2 + 6/36 +
Power supply Crimp terminal Crimp terminal Crimp terminal

Electrical data acc. to EN 61 984
UL/CSA Power contacts		 16 A 230/400 V 4 kV 3 40 A 690 V 8 kV 3 40 A 690 V 8 kV 3
Signal contacts 10 A 160 V 2,5 kV 3 10 A 250 V 4 kV 3 10 A 160 V 2,5 kV 3
Wire gauge
Power contacts
0,5 ... 4 mm2
1,5 ... 6 mm2
1,5 ... 6 mm2
Signal contacts 0,14 ... 2,5 mm2 0,14 ... 2,5 mm2 0,14 ... 2,5 mm2
Male insert (M) 09 38 032 3001 09 32 012 3001 09 38 042 3001
Female insert (F) 09 38 032 3101 09 32 012 3101 09 38 042 3101
