Fabricante: FANDIS

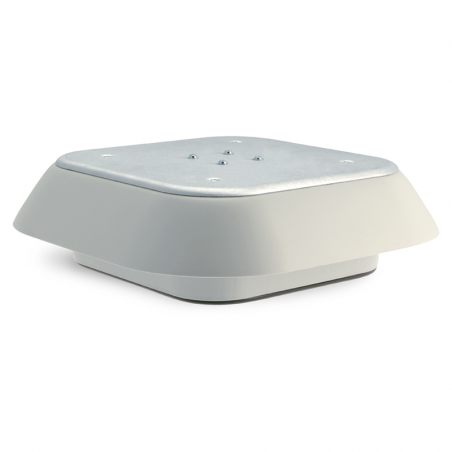

TP Series-Roof Fans - Outlet Indoor

  • Plastic structure with aluminum top
  • Plate thickness: any
  • Available in 4 protection degree: IP24, IP44, IP54 and IP55
  • Standard color RAL 7035, other colors available on request, subject to quantity
  • Frequency: 50/60 Hz
ModelRated VoltageRated powerMax air flowStatic PressureProtection DegreeApprovals
 VWm3 /hPaIP
TP19U115B 115 V a.c. 62/75 500/575 335/465 IP24 CE;
TP19U115B 115 V a.c. 97 575 465 IP24 CE; cURus; cCSAus; cULus;
TP19U115B 115 V a.c. 97 560 470 IP44 CE; cURus; cCSAus; cULus;
TP19U115B 115 V a.c. 66/74 420/490 340/480 IP54 CE;
TP19U115B 115 V a.c. 97 490 480 IP54 CE; cURus; cCSAus; cULus;
TP19U115B 115 V a.c. 66/74 420/490 340/480 IP55 CE;
TP19U115B 115 V a.c. 97 490 480 IP55 CE; cURus; cCSAus; cULus;
TP19U115B 230 V a.c. 67/83 500/575 335/465 IP24 CE;
TP19U115B 230 V a.c. 70/81 500/575 335/465 IP24 CE; cURus; cCSAus; cULus;
TP19U115B 230 V a.c. 69/81 485/560 330/470 IP44 CE;
TP19U115B 230 V a.c. 70/81 485/560 330/470 IP44 CE; cURus; cCSAus; cULus;
TP19U115B 230 V a.c. 70/83 420/490 340/480 IP54 CE;
TP19U115B 230 V a.c. 70/81 420/490 340/480 IP54 CE; cURus; cCSAus; cULus;
TP19U115B 230 V a.c. 70/83 420/490 340/480 IP55 CE;
TP19U115B 230 V a.c. 70/81 420/490 340/480 IP55 CE; cURus; cCSAus; cULus;
