Boîtiers hermétiques en polycarbonate de la ligne ZP dans l'ensemble

The IOT.ZPSET1510 PC and IOT.ZPSET1812.1 PC set with accessories are designed for quick and easy prototyping of IOT systems, SBC boards, any sensors or actuators.

The systems made on its basis can be easily serviced and modified thanks to the removable mounting plate that can be replaced without removing the housing from the wall / column.

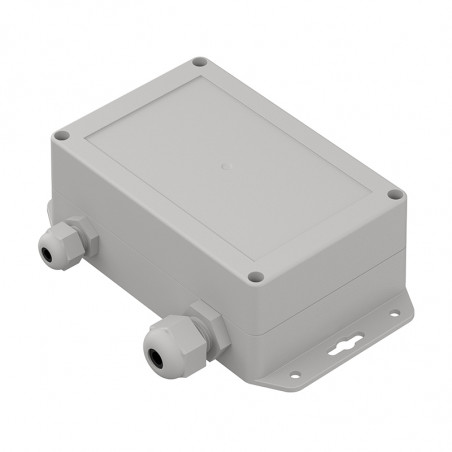

The main element of the set is hermetic casing with a mounting eye and a poured gasket. The housing is made of polycarbonate , which ensures good tightness and mechanical protection.

The cable glands included in the set, along with the milled holes for their installation in the housing, reduce the number of necessary modifications by the user, accelerating the assembly and installation process of the finished device .

The set for ZP150.100.60U includes

• 4x m3x20/10
• 1x cable gland M12
• 1x cable gland M16
• 4x M2,5x16 for PCB mounting
• 4x screw Ø 3,5/7 for mounting plate installation
• 4x PCB installation plastic spacers
• 8x nut M2,5 for PCB mounting
• 4x stand-off hex screws M2,5 x 20 for PCB installation
• 4x stand-off hex screws M2,5 x 10 for PCB installation
• 8x M2,5x6 for PCB mounting
• mounting plate ZMB150.100 IOT m1
• 1x installation template

The set for ZP 180.120.60U includes

• 4x m3x17/10
• 1x cable gland M12
• 1x cable gland M16
• 4x M2,5x16 for PCB mounting
• 4x screw Ø 3,5/7 for mounting plate installation
• 4x PCB installation plastic spacers
• 8x nakrętka M2,5 do mocowania PCB
• 4x stand-off hex screws M2,5 x 20 for PCB installation
• 4x stand-off hex screws M2,5 x 10 for PCB installation
• 8x M2,5x6 for PCB mounting
• mounting plate ZMB180.120 IOT m1
• 2x installation template

• Raspberry Pi controllers
• Odroid controllers
• Arduino Uno controllers
• Arduino Mega controllers
