Fabricant: DetasUltra

DES PDPS 75GA - Joints passe-câbles

  • 1732352090
  • Dimensions 88 x 88 x 66
  • Trou 70
  • Type de produit Moduły uszczelniające
  • 1 - 38 / 64 ∅

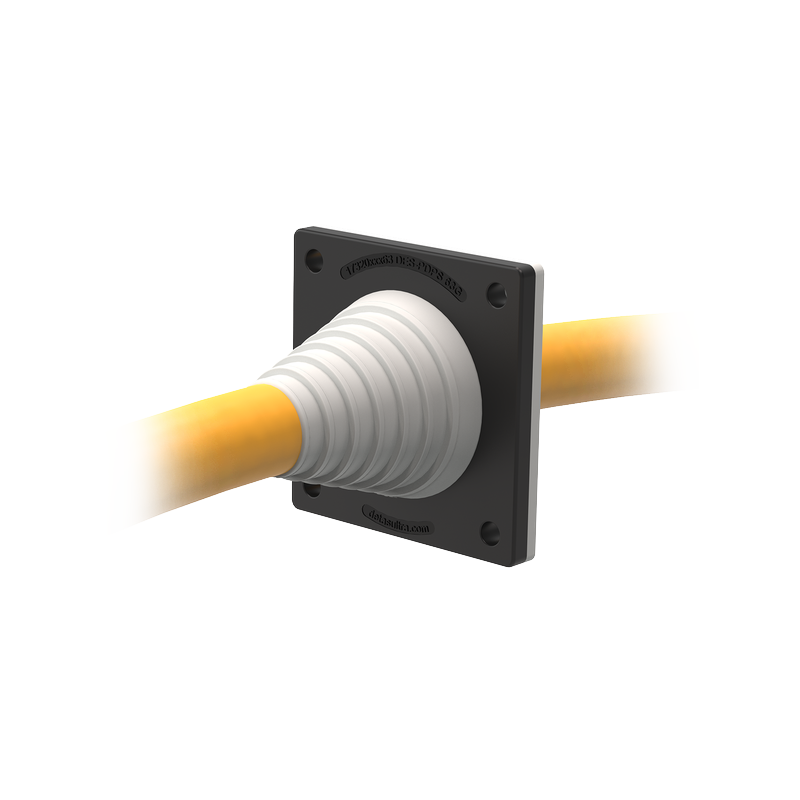

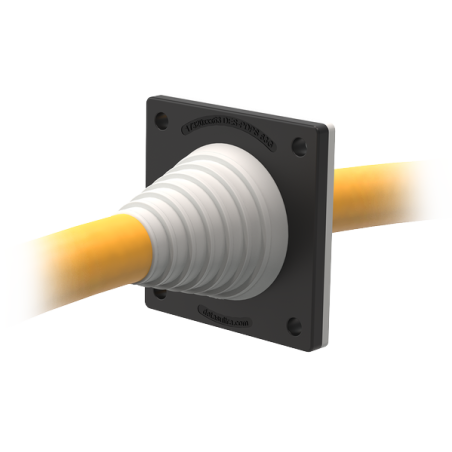

DES PDPS serie grommets are available in two sizes: M63 and M75.

  • For cables with diameters from 23 to 64 mm
  • Internal reinforcing frame
  • Front mounting with screws
  • UL94-V0
  • Material: TPE+PA, halogen- and silicone-free
  • Flammability: UL94-V0, self-extinguishing
  • Temperature: -40°C... +110°C (static)
Model Code Opening Ø [mm] Cable Ø max. [mm] Dimensions A Size B Dimensions H
DES-PDPS 63G 1732052163 58,5 1 - 23 / 55 88 88 66
DES-PDPS 75G 1732052175 70 1 - 38 / 64 88 88 66
DES PDPS 63GA 1732352080 58,5 1 - 23 / 55 88 88 66
DES PDPS 75GA 1732352090 70 1 - 38 / 64 88 88 66
