Fabricant: DetasUltra

DES PMU 32G - Plaques d'entrée de câbles

  • 1732060132
  • Dimensions 40
  • Type de produit Przepusty kablowe
  • 1- max. 22 ∅

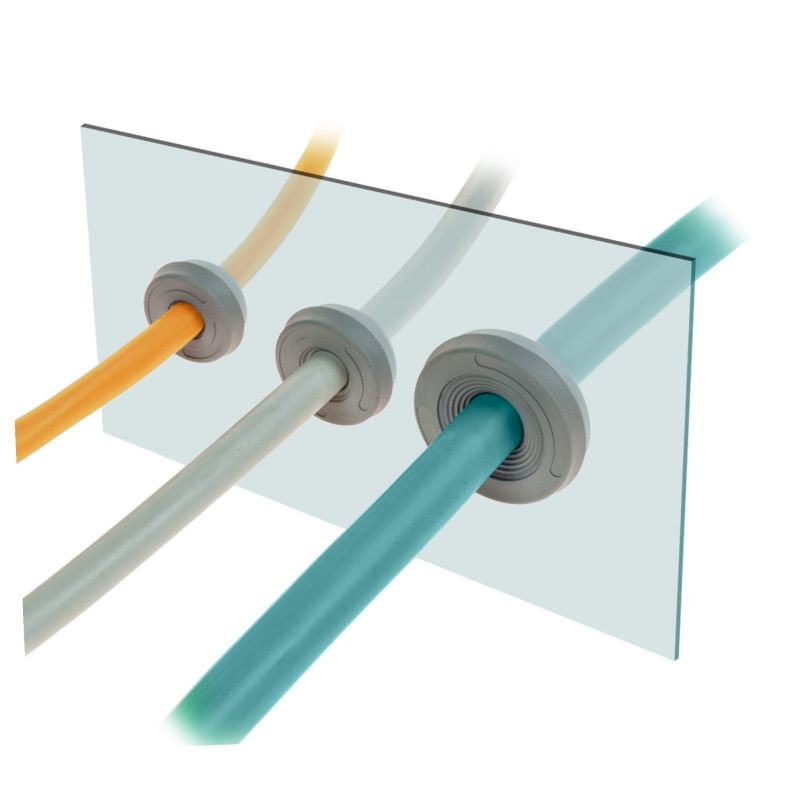

DES PMU cable glands use metric hole openings and are an economical and reliable alternative to standard industrial cable glands.

  • Metric cable gland
  • Quick to install
  • Cost efficient solution
  • High protection against water (IP66-67)
  • Material: TPE
  • Flammability: UL94-V0, self-extinguishing
  • Temperature: -40°C... +110°C (static)
  • Properties:halogen-free, silicone-free
  • Wall thickness: 1.5 to 2.5 mm
Model Code Dimensions [mm] Cut-out Dimensions [mm] No. cables - Ø cables [mm]
DES PMU 16G 1732060116 16,5 24
1- max. 10
DES PMU 20G 1732060120 20,5 29
1- max. 13
DES PMU 25G 1732060125 25,4 34
1- max. 15
DES PMU 32G 1732060132 32,5 40
1- max. 22
DES PMU 16B 1732061116 16,5 24
1- max. 10
DES PMU 20B 1732061120 20,5 29
1- max. 13
DES PMU 25B 1732061125 25,4 34
1- max. 15
DES PMU 32B 1732061132 32,5 40
1- max. 22
