Fabricant: DetasUltra

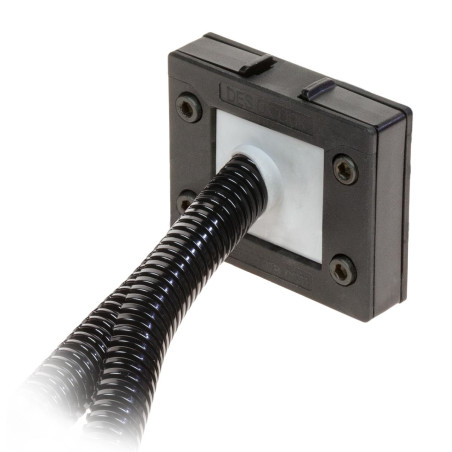

DES Q CLICK - Cadres d'entrée de câbles

  • 1731010308
  • Type de produit Presse-étoupes modulaires
  • Trou 40 x 36

The DES Q CLICK frame allows the crossing of up to 16 cables with and without connectors, with diameters from 2 to 31 mm, thanks to the cable grommets available.

  • Can be used with small and large grommets
  • Without screws, snap closure
  • Strain relief according to EN 62444
  • Compact dimensions
  • IP54 protection
  • External gasket included
  • Threaded inserts version on request
  • UL94-V0 for black and grey grommets
  • Material: PC+GF
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +155°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Max. opening [mm]
DES Q CLICK 1731010308 40 x 36

Envoyez une demande

Êtes-vous intéressé par ce produit? Avez-vous besoin d'informations supplémentaires ou d'une tarification individuelle?

Nous contacter
DEMANDEZ LE PRODUIT close
Merci d'avoir envoyé votre message. Nous vous répondrons dans les plus brefs délais.
DEMANDEZ LE PRODUIT close
Feuilleter

Ajouter à la liste de souhaits

Vous devez être connecté

  • Type de produit Presse-étoupes modulaires
  • Trou 40 x 36

The DES Q CLICK frame allows the crossing of up to 16 cables with and without connectors, with diameters from 2 to 31 mm, thanks to the cable grommets available.

  • Can be used with small and large grommets
  • Without screws, snap closure
  • Strain relief according to EN 62444
  • Compact dimensions
  • IP54 protection
  • External gasket included
  • Threaded inserts version on request
  • UL94-V0 for black and grey grommets
  • Material: PC+GF
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +155°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Max. opening [mm]
DES Q CLICK 1731010308 40 x 36
