Fabricant: DetasUltra

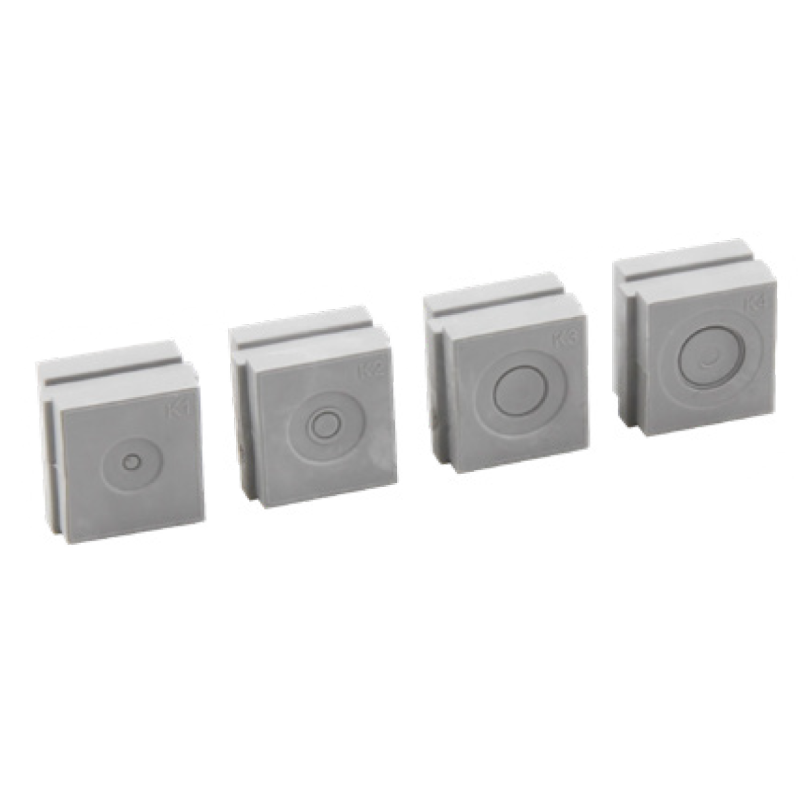

SPC K3G - Joints passe-câbles

  • 1731052560
  • Type de produit Moduły uszczelniające
  • 13

The SPC K grommets have a dual function: they can be used as "blind" grommets for future applications of single cable without connector or they can be used as single grommet for one cable without connector.

  • Small grommets for cables with max. diameter 14mm
  • Can be used in DES xx CLICK frames and OSF divisible cable glands.
  • Colours grey and black
  • UL94-V0 for both colours
  • Material: TPE
  • Flammability: self-extinguishing according to UL94-V0 (grey or black)
  • Temperature: -40°C... +110°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Cable Ø max. [mm]
SPC K1G 1731052550 8
SPC K2G 1731052555 11
SPC K3G 1731052560 13
SPC K4G 1731052565 14
SPC K1B 1731052650 8
SPC K2B 1731052652 11
SPC K3B 1731052654 13
SPC K4B 1731052656 14
