Fabricant: DetasUltra

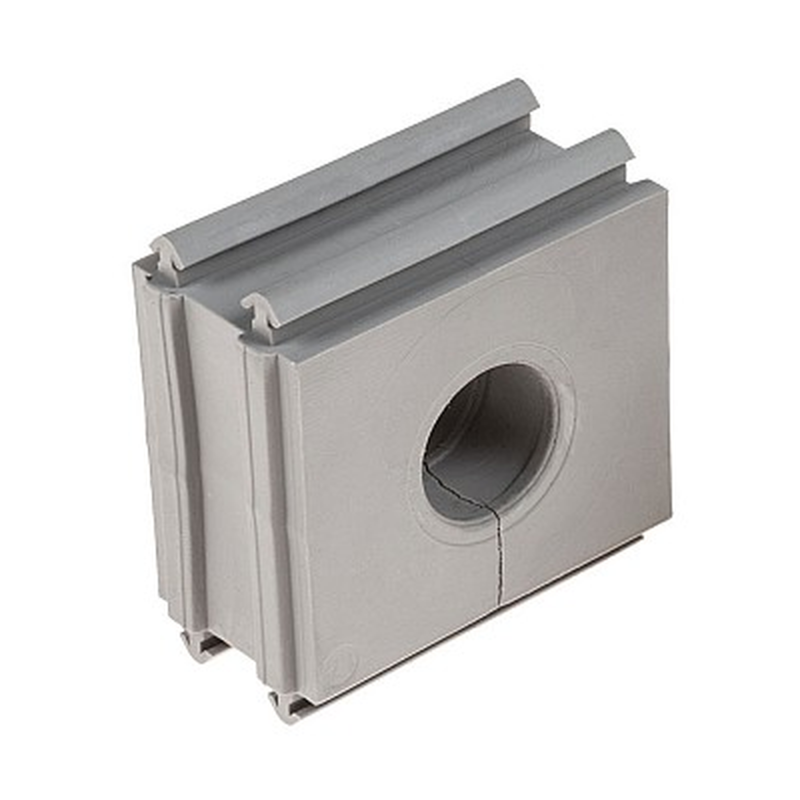

SPG 31G - Joints passe-câbles

  • 1731022131
  • Type de produit Moduły uszczelniające
  • 31 ~ 32

The SPG series cable grommets allow cables diameter ranges from 17 to 35 mm to be routed inside the DES splittable frames series .

  • Grommets for cables from 17 to 35 mm diameter
  • Grommet version without hole
  • Colours grey and black
  • UL94-V0 for both colours
  • Material: TPE
  • Flammability: self-extinguishing according to UL94-V0 (grey or black)
  • Temperature: -40°C... +110°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Cable Ø max. [mm]
SPG 0G 1731022000 -
SPG 0B 1731022020 -
SPG 17G 1731022117 17 ~ 18
SPG 18G 1731022118 18 ~ 19
SPG 19G 1731022119 19 ~ 20
SPG 20G 1731022120 20 ~ 21
SPG 21G 1731022121 21 ~ 22
SPG 22G 1731022122 22 ~ 23
SPG 23G 1731022123 23 ~ 24
SPG 24G 1731022124 24 ~ 25
SPG 25G 1731022125 25 ~ 26
SPG 26G 1731022126 26 ~ 27
SPG 27G 1731022127 27 ~ 28
SPG 28G 1731022128 28 ~ 29
SPG 29G 1731022129 29 ~ 30
SPG 30G 1731022130 30 ~ 31
SPG 31G 1731022131 31 ~ 32
SPG 32G 1731022132 32 ~ 33
SPG 33G 1731022133 33 ~ 34
SPG 34G 1731022134 34 ~ 35
SPG 17B 1731022217 17 ~ 18
SPG 18B 1731022218 18 ~ 19
SPG 19B 1731022219 19 ~ 20
SPG 20B 1731022220 20 ~ 21
SPG 21B 1731022221 21 ~ 22
SPG 22B 1731022222 22 ~ 23
SPG 23B 1731022223 23 ~ 24
SPG 24B 1731022224 24 ~ 25
SPG 25B 1731022225 25 ~ 26
SPG 26B 1731022226 26 ~ 27
SPG 27B 1731022227 27 ~ 28
SPG 28B 1731022228 28 ~ 29
SPG 29B 1731022229 29 ~ 30
SPG 30B 1731022230 30 ~ 31
SPG 31B 1731022231 31 ~ 32
SPG 32B 1731022232 32 ~ 33
SPG 33B 1731022233 33 ~ 34
SPG 34B 1731022234 34 ~ 35
SPG 0GA 1731322000 -
SPG 0BA 1731322020 -
SPG 17GA 1731322117 17 ~ 18
SPG 18GA 1731322118 18 ~ 19
SPG 19GA 1731322119 19 ~ 20
SPG 20GA 1731322120 20 ~ 21
SPG 21GA 1731322121 21 ~ 22
SPG 22GA 1731322122 22 ~ 23
SPG 23GA 1731322123 23 ~ 24
SPG 24GA 1731322124 24 ~ 25
SPG 25GA 1731322125 25 ~ 26
SPG 26GA 1731322126 26 ~ 27
SPG 27GA 1731322127 27 ~ 28
SPG 28GA 1731322128 28 ~ 29
SPG 29GA 1731322129 29 ~ 30
SPG 30GA 1731322130 30 ~ 31
SPG 31GA 1731322131 31 ~ 32
SPG 32GA 1731322132 32 ~ 33
SPG 33GA 1731322133 33 ~ 34
SPG 34GA 1731322134 34 ~ 35
SPG 17BA 1731322217 17 ~ 18
SPG 18BA 1731322218 18 ~ 19
SPG 19BA 1731322219 19 ~ 20
SPG 20BA 1731322220 20 ~ 21
SPG 21BA 1731322221 21 ~ 22
SPG 22BA 1731322222 22 ~ 23
SPG 23BA 1731322223 23 ~ 24
SPG 24BA 1731322224 24 ~ 25
SPG 25BA 1731322225 25 ~ 26
SPG 26BA 1731322226 26 ~ 27
SPG 27BA 1731322227 27 ~ 28
SPG 28BA 1731322228 28 ~ 29
SPG 29BA 1731322229 29 ~ 30
SPG 30BA 1731322230 30 ~ 31
SPG 31BA 1731322231 31 ~ 32
SPG 32BA 1731322232 32 ~ 33
SPG 33BA 1731322233 33 ~ 34
SPG 34BA 1731322234 34 ~ 35
