Fabricant: DetasUltra

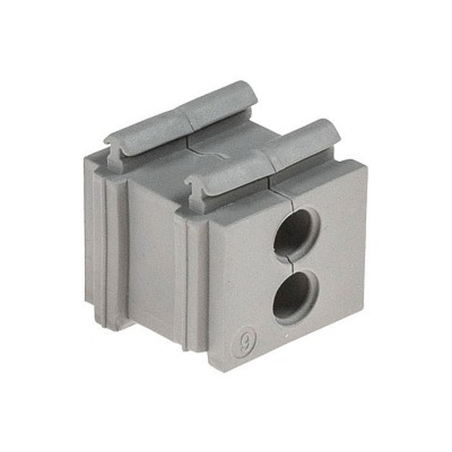

SPP 2X4G - Joints passe-câbles

  • 1731020308
  • Type de produit Moduły uszczelniające
  • 2 - 4 ∅

The SPP 2X series cable grommets allow two cables with diameter from 2 to 8 mm to be routed through the DES splittable frames series.

  • Cable grommets for cable diameter from 2 to 8 mm
  • Long lasting product and high resistance to industrial oils.
  • Colours grey and black
  • UL94-V0 for both colours
  • Material: TPE
  • Flammability: self-extinguishing according to UL94-V0 (grey or black)
  • Temperature: -40°C... +110°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code No. cables - Ø cables [mm]
SPP 2X2G 1731020304 2 - 2
SPP 2X3G 1731020306 2 - 3
SPP 2X4G 1731020308 2 - 4
SPP 2X5G 1731020310 2 - 5
SPP 2X6G 1731020312 2 - 6
SPP 2X7G 1731020314 2 - 7
SPP 2X8G 1731020316 2 - 8
SPP 2X2B 1731020404 2 - 2
SPP 2X3B 1731020406 2 - 3
SPP 2X4B 1731020408 2 - 4
SPP 2X5B 1731020410 2 - 5
SPP 2X6B 1731020412 2 - 6
SPP 2X7B 1731020414 2 - 7
SPP 2X8B 1731020416 2 - 8
SPP2X2GA 1731320304 2 - 2
SPP 2X3GA 1731320306 2 - 3
SPP2X4GA 1731320308 2 - 4
SPP2X5GA 1731320310 2 - 5
SPP 2X6GA 1731320312 2 - 6
SPP 2X7GA 1731320314 2 - 7
SPP 2X8GA 1731320316 2 - 8
SPP2X2BA 1731320404 2 - 2
SPP2X3BA 1731320406 2 - 3
SPP2X4BA 1731320408 2 - 4
SPP 2X5BA 1731320410 2 - 5
SPP 2X6BA 1731320412 2 - 6
SPP 2X7BA 1731320414 2 - 7
SPP 2X8BA 1731320416 2 - 8
