Fabricant: DetasUltra

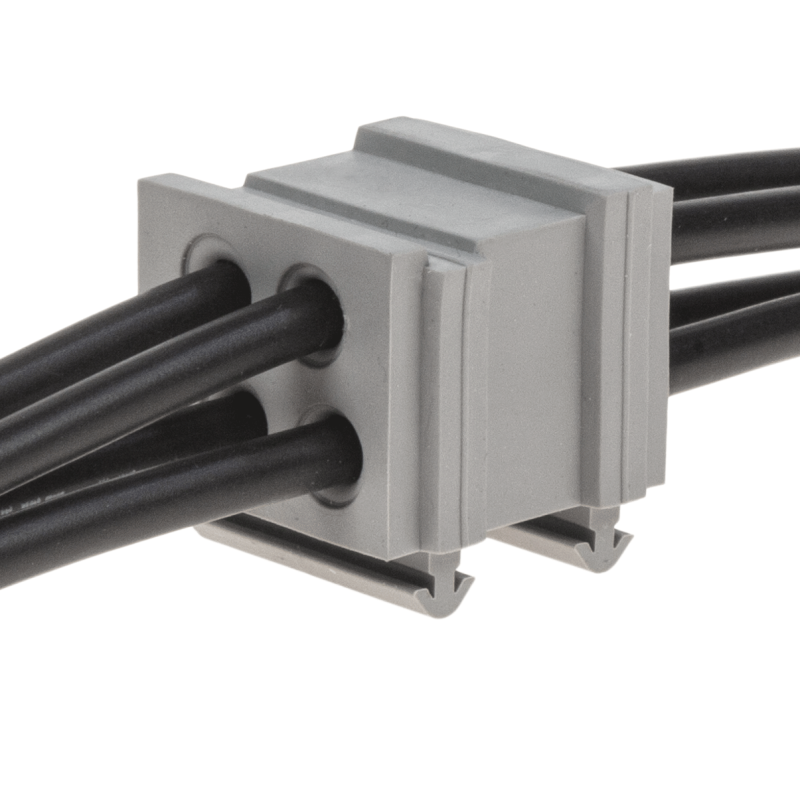

SPP M4B - Joints passe-câbles

  • 1731020604
  • Type de produit Modules détanchéité

The piercable multiple grommets are part of the SPP M series and allow a number of cables without connectors with a maximum diameter of 6 mm to be routed inside the DES series divisible frames.

  • Pierceable blind multi-grommets for cables without connectors
  • For up to 4 cables max 6 mm diameter
  • Colours grey and black
  • UL94-V0 for both colours
  • Material: TPE
  • Flammability: self-extinguishing according to UL94-V0 (grey or black)
  • Temperature: -40°C... +110°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code
SPP M4G 1731020504
SPP M4BG 1731020505
SPP M4B 1731020604
SPP M4BB 1731020605

Envoyez une demande

Êtes-vous intéressé par ce produit? Avez-vous besoin d'informations supplémentaires ou d'une tarification individuelle?

Nous contacter
DEMANDEZ LE PRODUIT close
Merci d'avoir envoyé votre message. Nous vous répondrons dans les plus brefs délais.
DEMANDEZ LE PRODUIT close
Feuilleter

Ajouter à la liste de souhaits

Vous devez être connecté

  • Type de produit Modules détanchéité

The piercable multiple grommets are part of the SPP M series and allow a number of cables without connectors with a maximum diameter of 6 mm to be routed inside the DES series divisible frames.

  • Pierceable blind multi-grommets for cables without connectors
  • For up to 4 cables max 6 mm diameter
  • Colours grey and black
  • UL94-V0 for both colours
  • Material: TPE
  • Flammability: self-extinguishing according to UL94-V0 (grey or black)
  • Temperature: -40°C... +110°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code
SPP M4G 1731020504
SPP M4BG 1731020505
SPP M4B 1731020604
SPP M4BB 1731020605
