Fabricant: DetasUltra

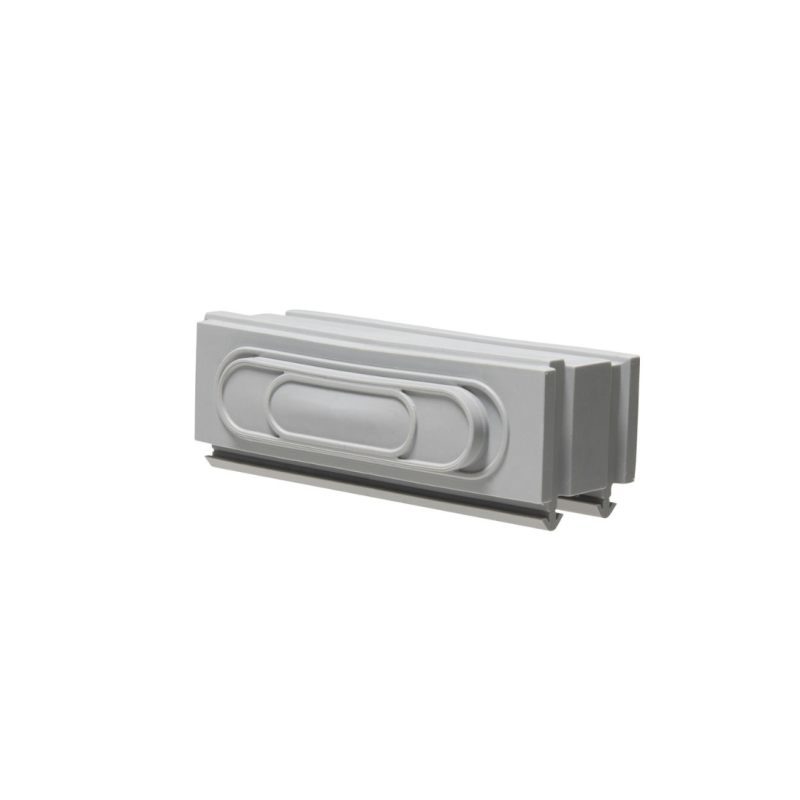

SPP Z3  - Joints passe-câbles

  • 1731020730
  • Type de produit Modules détanchéité

The SPP Z3 is a grommet for flat cables which is designed to adapt to various cable sizes. The pierceable membrane is divided into multiple sections. It is compatible with existing DES frames, with no need for a specific frame. The grommet is cut in the proper slots according to the width of the flat cable version that need to be used. When the cable crosses the wall it provides IP66 protection and additionally offers remarkable strain relief.

  • Can be used with flat cables up to 65 mm wide
  • No need of special frames, compatible with all DES family frames
  • IP66
  •  Same size as 3 SPPs
  • Material: TPE
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +110°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code
SPP Z3 1731020730
