Relier les transducteurs de distance PT8000
  • Relier les transducteurs de distance PT8000

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: Celesco

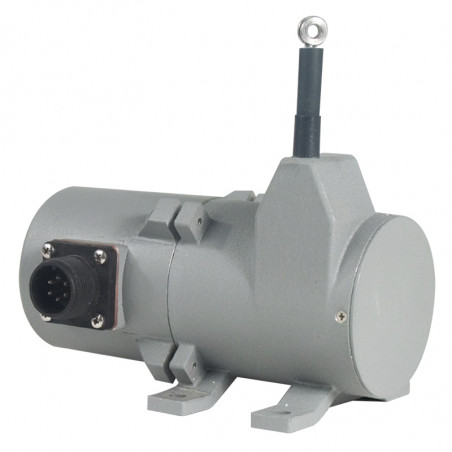

Relier les transducteurs de distance PT8000

PT8000 transducers group for industrial application(up to 1500 mm)- Measure range 1500 mm

- Strong casing
- for difficult industrial applications
- available in EX versions

technical data

Group PT8101 PT8150 PT8232 PT8420 PT8510 PT8CN PT8DN PT8600
Output Signal Options Potentiometer encoder RS 232 current voltage Canabus J1939 Device Net moduł kablowy


Technical data

Measurement range [mm] 1500 1500 1500 1500 1500 1500 1500 1500
Accuracy 0,25%...0,10% 0,02%...0,04% 0,25%...0,10% 0,28%...0,15% 0,25%...0,15% 0,25%...0,10% 0,25%...0,10% 0,02%...%0,04%
Repeatability 0,02% 0,02% 0,02% 0,05% 0,05% 0,02% 0,02% -
Durability 250k...2,5 mln 5 mln 250k...2,5 mln 250k...2,5 mln 250k...2,5 mln 5 mln 250k...2,5 mln 5...10 mln


Casing

Material Aluminium
Noble steel
Aluminium
Noble steel
Aluminium
Noble steel
Aluminium
Noble steel
Aluminium
Noble steel
Aluminium
Noble steel
Aluminium
Noble steel
Aluminium
Noble steel
Protection level IP67/68 IP67 IP67 IP67/68 IP67/68 IP65/67 IP67 -
Operation temperature -40...90°C -17...71°C -40...90°C -40...90°C -40...90°C -40...85°C -40...85°C -40...90°C
Vibrations Do 10g @
2000 Hz max
Do 10g @
2000 Hz max
Do 10g @
2000 Hz max
Do 10g @
2000 Hz max
Do 10g @
2000 Hz max
Do 10g @
2000 Hz max
Do 10g @
2000 Hz max
Do 10g @
2000 Hz max


Measurement cord

Noble steel covered with nylon. [inch] * ø 0,034 ø 0,034 ø 0,034 ø 0,034 ø 0,034 ø 0,034 ø 0,034
Noble steel ø 0,047 ø 0,047 ø 0,047 ø 0,047 ø 0,047 ø 0,047 ø 0,047
Thermoelastic plastic ø 0,062 ø 0,062 ø 0,062 ø 0,062 ø 0,062 ø 0,062 ø 0,062


Electrical connection

Tips for soldering - - - - - - - -
Wires - - - - - - - -
Cables 7,5 m cable
water proof
7,5 m cable 7,5 m cable 7,5 m cable
water proof
7,5 m cable
water proof
- - -
Plug Metal plug/
plastic
6 pol.+socket
Metal plug/
plastic
6/18 pol.+
socket
Metal plug/
plastic
6 pol.+socket
plastic plug
6 pol.+socket
Metal plug/
plastic
6 pol.+socket
Micro plug  5pol.+
+ socket plug
(also 5m cables)
Micro plug 5pol.+
+ socket plug
(also 5m cables)
Compatible with different type of encoders


Properties
  Integrated brush for cable. cable breaking system.  Integrated brush for cable. cable breaking system. Integrated brush for cable. cable breaking system. Integrated brush for cable. cable breaking system. EX execution Integrated brush for cable. cable breaking system. Integrated brush for cable. cable breaking system. Zintegrowana
szczotka do kabla;
system hamowania
kabla
Zintegrowana
szczotka do kabla;
system hamowania
kabla
*) 1 inch= 25,4 mm
