C-CAP 04 Water-cooled capacitor

C-Cap is a new innovative capacitor that was developed by Celem. It is protected by US Patent 9799454 and US Patent 9865398.

  • Temperature switch: Normally Closed, 24V, 1A, recommended wire size 16-28AWG. Opens at 55°C.
  • Mounting: Recommended torque for M16: 8-10 Nm, recommended torque for M6: 5Nm. Celem can supply designated bus-bars.
  • Cooling: Maximal inlet pressure 6 Bar, maximal outlet temperature: 45°C. It is possible to get 4 straight water connectors.

Specifications

Type C-CAP 04

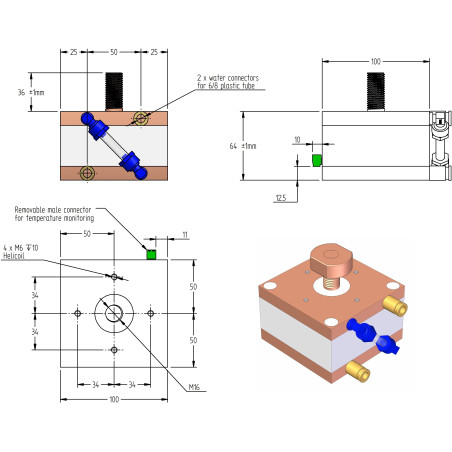

Dimensions (L x W x H) mm 100 x 100 x 64
Weight kg 2.5
Capacitance (±10%) µF 2.2µF 3.8µF 5.8µF 8µF 11.5µF 18.5µF 24µF
Sinusoidal Voltage Vrms 900 800 700 650 550 500
Peak Voltage V 1344 1202 1061 990 919 778 707
Max. Current Arms 1600 1900 2000 2100 2200 2400
Max. Power kVAr 1200
Freq Range @ Half Power kHz 54-309 37-240 34-183 24-133 23-128 17.1-83 15.9-64
Freq Range @ Full Power kHz 107-154 79-126 67-92 49-66 39-51 34-35 32-32
